IPU Module Fan Connector End View (View 123)

WHT
Right Rear of Cargo Area
On Driver's Side Wire Harness

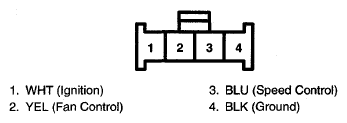

Fig 1: IPU Module Fan Connector Terminal (View 123)

G07760708

Courtesy of AMERICAN HONDA MOTOR CO., INC.
