HandsFreeLink Control Unit Connector End View (Navigation) (View 207)
HandsFreeLink Control Unit Connector End View (Navigation) (View 207)
GRY
Behind Glove Box
On Dashboard Wire Harness

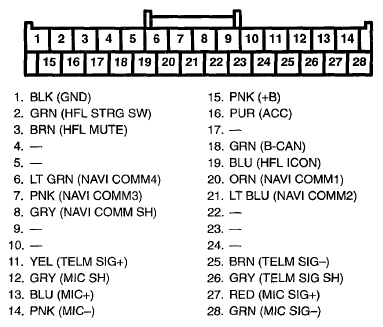

Fig 1: HandsFreeLink Control Unit (Navigation) Connector Terminal (View 207)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
