Gauge Control Module Connector End View (View 209)

GRY
Left Side of Dash
On Dashboard Wire Harness

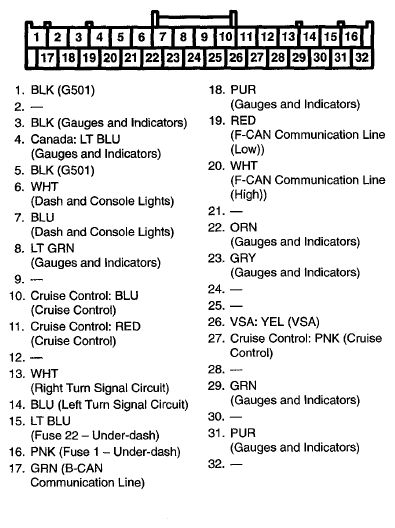

Fig 1: Gauge Control Module Connector Terminal (View 209)

G07760795

Courtesy of AMERICAN HONDA MOTOR CO., INC.
