Battery Module Temperature Sensor 3 Connector End View (View 232)
Battery Module Temperature Sensor 3 Connector End View (View 232)
WHT
In Battery Module
On Junction Board Wire Harness

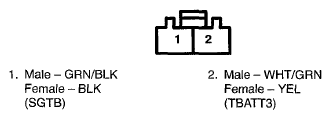

Fig 1: Battery Module Temperature Sensor 3 Connector Terminal (View 232)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
