Battery Module Temperature Sensor 2 Connector End View (View 231)
Battery Module Temperature Sensor 2 Connector End View (View 231)
WHT
In Battery Module
On Junction Board Wire Harness

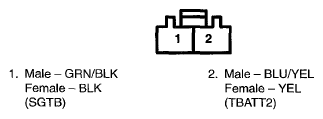

Fig 1: Battery Module Temperature Sensor 2 Connector Terminal (View 231)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
