Audio Unit Connector End View (Without Navigation) (View 212)

Behind Audio Unit
Connector A

DX:
- N/A
- On Dashboard Wire Harness
Fig 1: Audio Unit (Without Navigation) Connector Terminal - Connector A DX (View 212)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

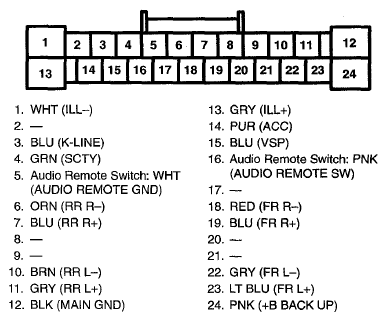

LX, EX:
- GRY/WHT
- On Dashboard Wire Harness
Fig 2: Audio Unit (Without Navigation) Connector Terminal - LX, EX (View 212)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

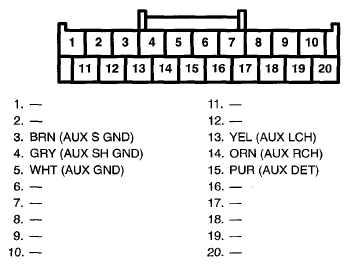

Connector B (Auxiliary Jack Assembly)
- N/A
- On Dashboard Wire Harness
Fig 3: Audio Unit (Without Navigation) Connector Terminal - Connector B Auxiliary Jack Assembly (View 212)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

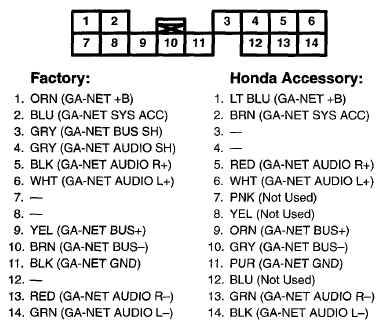

Connector E (USB Adapter, XM Radio)
- WHT
- On Dashboard Wire Harness (Factory)
- On USB Harness (Honda Accessory)
- On XM Radio Harness (Honda Accessory)
Fig 4: Audio Unit (Without Navigation) Connector Terminal - Connector E (View 212)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

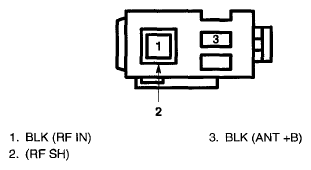

Connector G
- GRY
- On AM/FM Antenna Sub-lead Harness
Fig 5: Audio Unit (Without Navigation) Connector Terminal - Connector G (View 212)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
