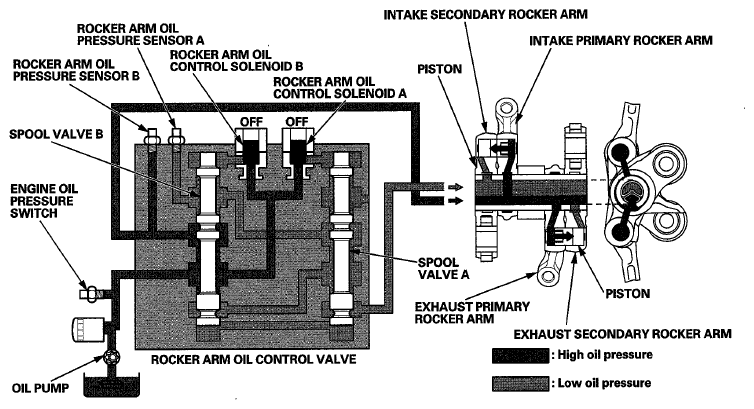

Normal valve lift mode 1 (default)
Rocker arm oil control solenoids A and B are both off. Engine oil pressure from the oil pump passes the spool valve and the rocker arm. Engine oil pressure is applied to the intake side pistons and the exhaust side pistons. This causes the primary and secondary rocker arms to shift the valves to their normal lift positions.
OIL PRESSURE SPECIFICATION
| Rocker arm oil control solenoid A | Rocker arm oil control solenoid B | Rocker arm oil pressure sensor A | Rocker arm oil pressure sensor B | Rocker arm operation position | |
|---|---|---|---|---|---|
| Normal valve lift mode 1 | OFF | OFF | Low | High | Normal lift position |
