Accelerator Pedal Position (APP) Sensor

As the accelerator pedal position changes, the sensor varies the signal voltage to the PCM which then controls the throttle position.

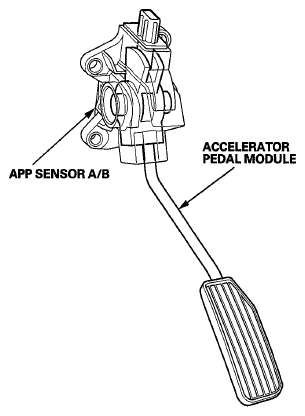

Fig 1: Identifying Accelerator Pedal Position Sensor And Accelerator Pedal Module
G06429188Courtesy of AMERICAN HONDA MOTOR CO., INC.
