Audio Unit Connector G (3P)

Fig 1: Identifying Audio Unit G (3P) Connector Terminals
G06431792Courtesy of AMERICAN HONDA MOTOR CO., INC.
TERMINAL NAME REFERENCE CHART

Cavity Wire Color Terminal Name Connect to
G1 BLK RFIN AM/FM antenna
G2 BLK RFSH Shield for terminal No. 1
G3 BLK ANT+B AM/FM antenna

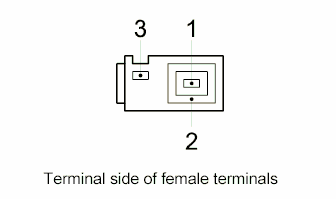

Fig 1: Identifying Audio Unit G (3P) Connector Terminals
G00501845Courtesy of AMERICAN HONDA MOTOR CO., INC.
TERMINAL NAME REFERENCE CHART

Cavity Wire Color Terminal Name Connect to
G1 - RF IN AM/FM antenna
G2 - RF SH Shield for terminal No. 1
G3 - ANT +B AM/FM antenna
