With navigation (Audio-navigation unit)

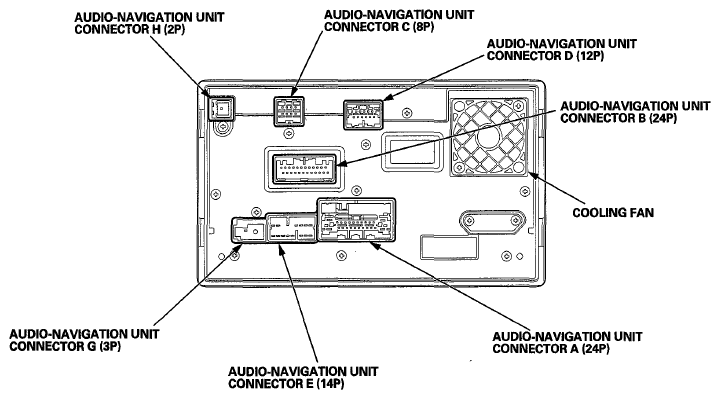

Fig 1: Identifying Audio Unit Inputs And Outputs Connector Location (With Navigation)
G06431784Courtesy of AMERICAN HONDA MOTOR CO., INC.
NOTE: Refer to the navigation section for audio-navigation unit connector C, D, and H input and outputs (see NAVIGATION UNIT CONNECTORS ).
