Audio Unit Connector B (20P)

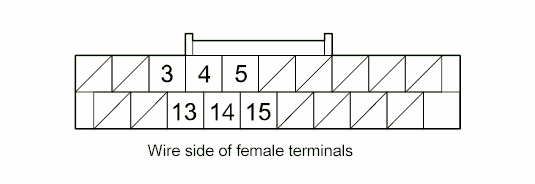

Fig 1: Identifying Audio Unit B (20P) Connector Terminals
G00501844Courtesy of AMERICAN HONDA MOTOR CO., INC.
TERMINAL NAME REFERENCE CHART

Cavity Wire Color Terminal Name Connect to
B3 BRN AUX S-GND Auxiliary jack assembly
B4 GRY(1) AUX SH-GND Shield for terminals No. 3, No. 13, and No. 14
B5 WHT AUX GND Auxiliary jack assembly
B13 YEL AUX LCH Auxiliary jack assembly
B14 ORN AUX RCH Auxiliary jack assembly
B15 PUR AUX DET Auxiliary jack assembly
(1) The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire shown on the circiut digram.
