Fuel Tank Unit (View 122)
Fuel Tank Unit (View 122)
GRY
Under Center Console
On Dashboard Wire Harness

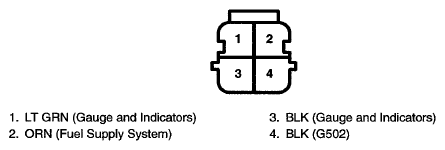

Fig 1: Fuel Tank Unit Connector Terminal (View 122)
