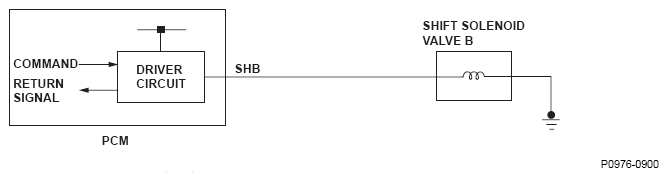

DTC P0977: Shift Solenoid Valve B Circuit (Open): Notes
SHIFT SOLENOID VALVE DRIVING SIGNAL COMBINATION TABLE
| Shift solenoid valve A | Shift solenoid valve B | Shift solenoid valve C | Shift solenoid valve D | |
|---|---|---|---|---|
| Park | OFF | OFF | OFF | ON |
| Reverse | OFF | ON | ON | ON |
| Neutral | OFF | OFF | OFF | OFF |
| 1st | OFF | ON | OFF | ON/OFF |
| 1st - 2nd | ON | ON | OFF | ON/OFF |
| 2nd | ON | OFF | OFF | ON/OFF |
| 2nd - 3rd | OFF | OFF | OFF | ON/OFF |
| 3rd | OFF | OFF | ON | ON/OFF |
| 3rd - 4th | ON | OFF | ON | ON/OFF |
| 4th | ON | ON | ON | ON/OFF |
| 4th - 5th | OFF | ON | ON | ON/OFF |
| 5th | OFF | ON | OFF | ON/OFF |
