Driving Pattern

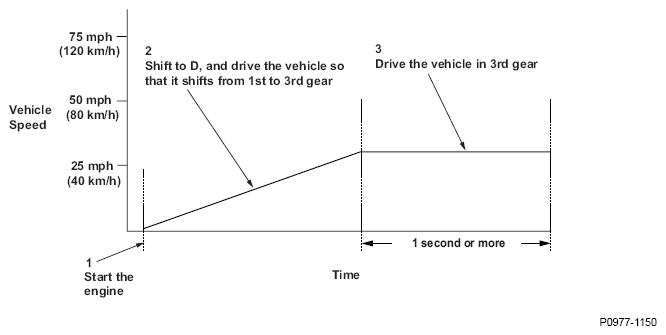

Fig 1: Vehicle Speed Driving Pattern
G08526202
  1. Start the engine.
  2. Shift to D, and drive the vehicle so that it shifts from 1st to 3rd gear.
  3. Drive the vehicle in 3rd gear for at least 1 second
    • Drive the vehicle in this manner only if the traffic regulations and ambient conditions allow.
