DTC P0722: Output Shaft (Countershaft) Speed Sensor Circuit (No Signal Input)
>>
Notes
DTC P0722: Output Shaft (Countershaft) Speed Sensor Circuit (No Signal Input): Notes

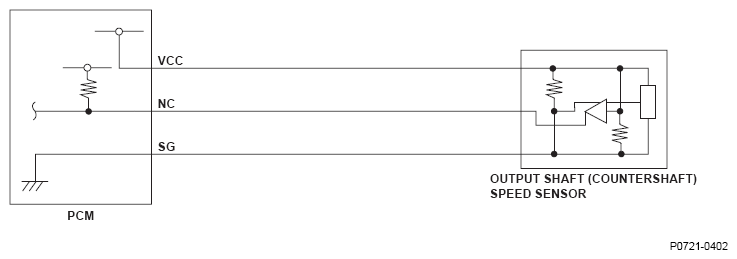

Fig 1: Output Shaft Speed Sensor - Circuit Diagram (No Signal Input)

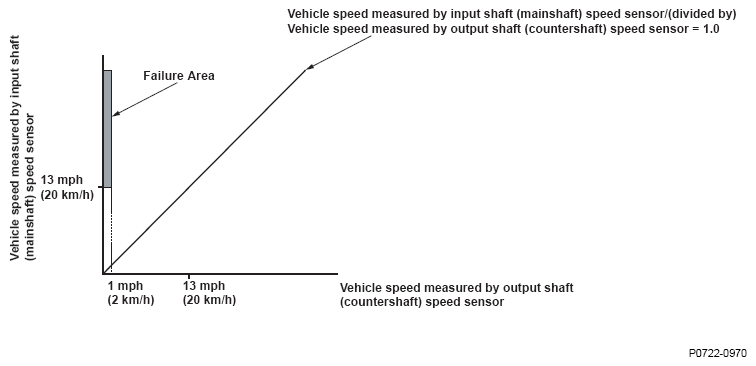

Fig 2: Output Shaft Speed Sensor Graph
