Component Location Index

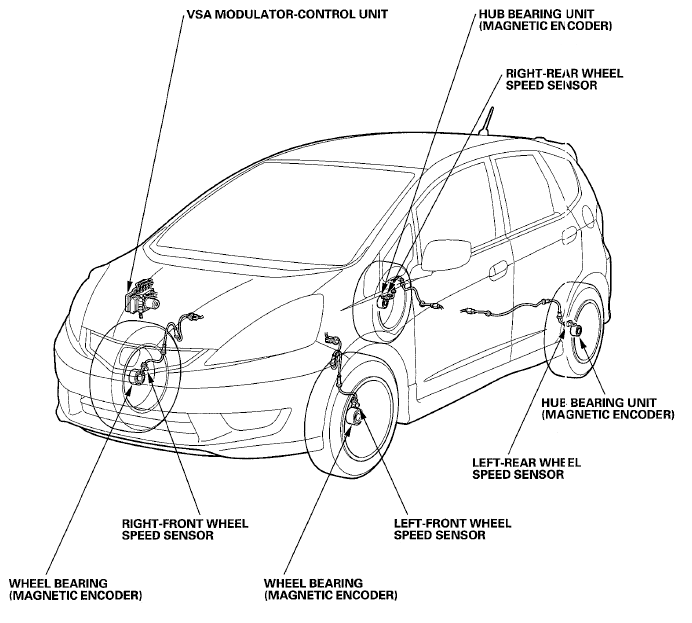

Fig 1: Identifying VSA Replacement Components (1 Of 2)
G05959265Courtesy of AMERICAN HONDA MOTOR CO., INC.

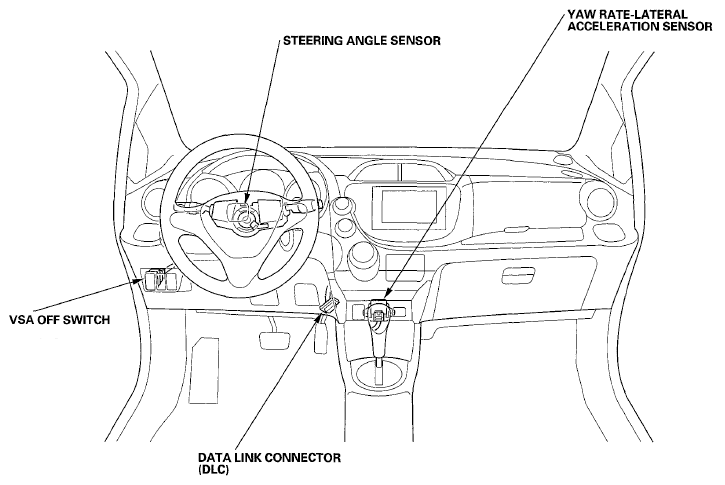

Fig 2: Identifying VSA Replacement Components (2 Of 2)
G05959266Courtesy of AMERICAN HONDA MOTOR CO., INC.
