Starter Removal and Installation: Removal
- Do the battery terminal disconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION
).
- Remove the coolant reservoir.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the intake manifold (see REMOVAL
).
- Remove the dipstick, then remove the dipstick tube (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Disconnect the oil pressure switch connector (B).

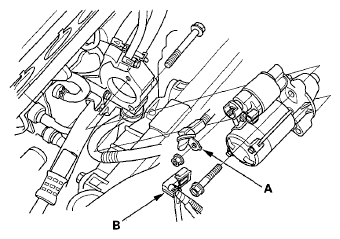

- Disconnect the starter cable (A) from the B terminal and disconnect the connector (B) from the S terminal.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the two bolts securing the starter, then remove the starter from under the vehicle.
