Circuit Diagram - Without Security
Circuit Diagram - Without Security

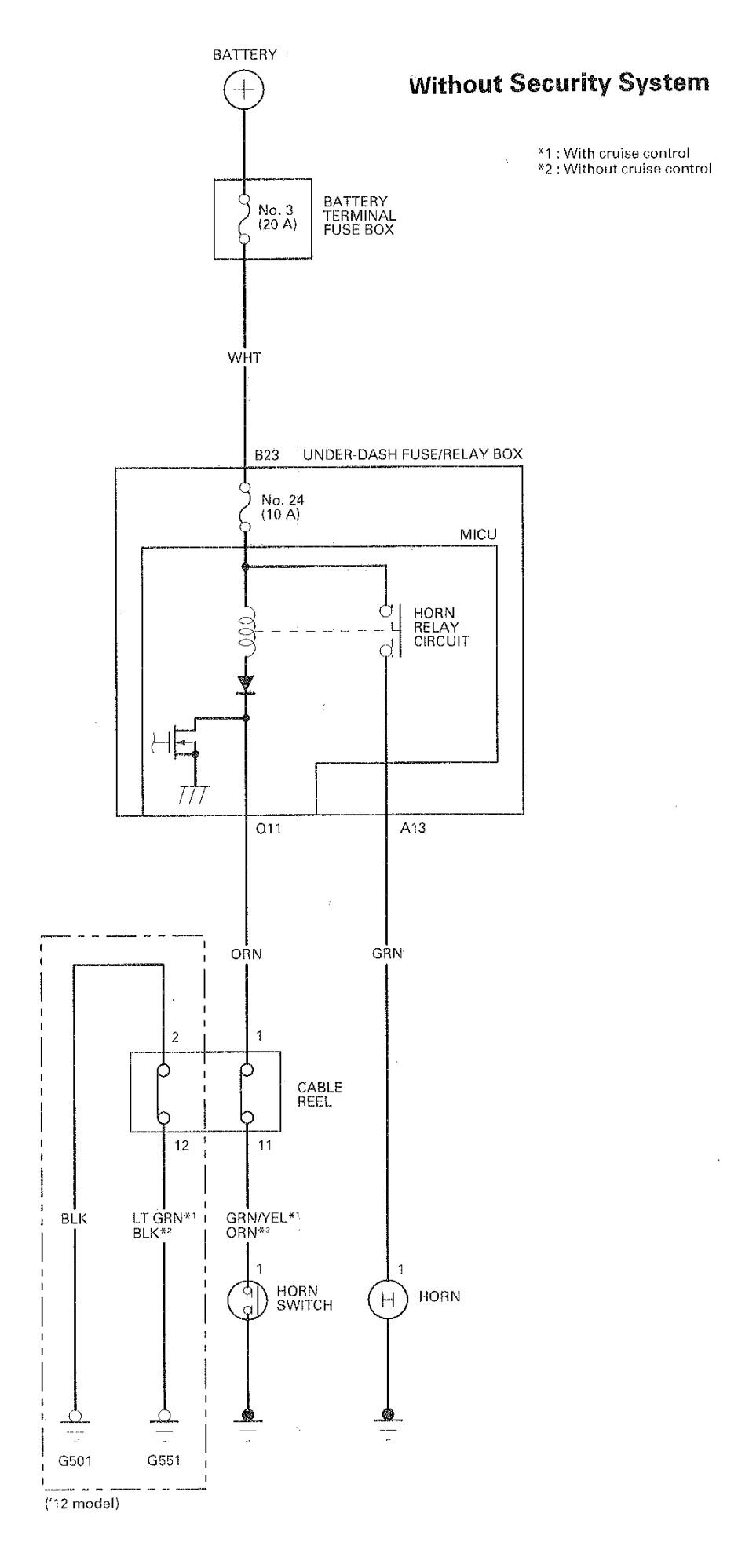

Fig 1: Identifying Horns - Circuit Diagram (Without Security)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
