Under-dash Fuse/Relay Box - Fuse 1
Under-dash Fuse/Relay Box - Fuse 1

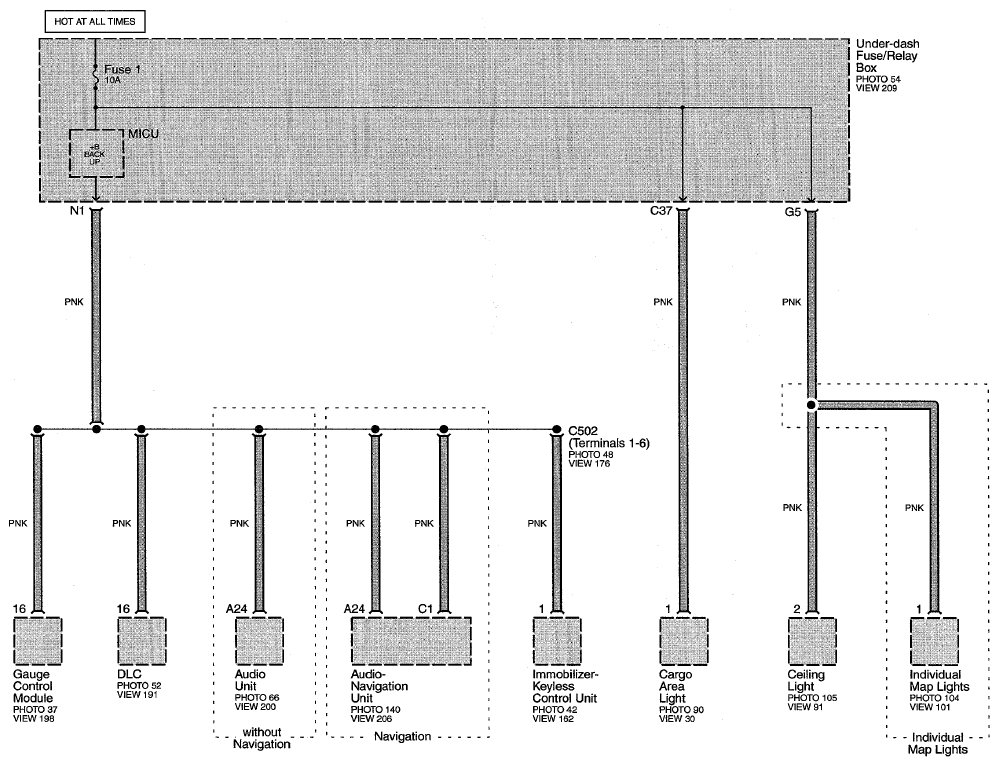

Fig 1: Under-Dash Fuse/Relay Box Circuit Diagram - Fuse 1 (Page 10-4)
