without Navigation

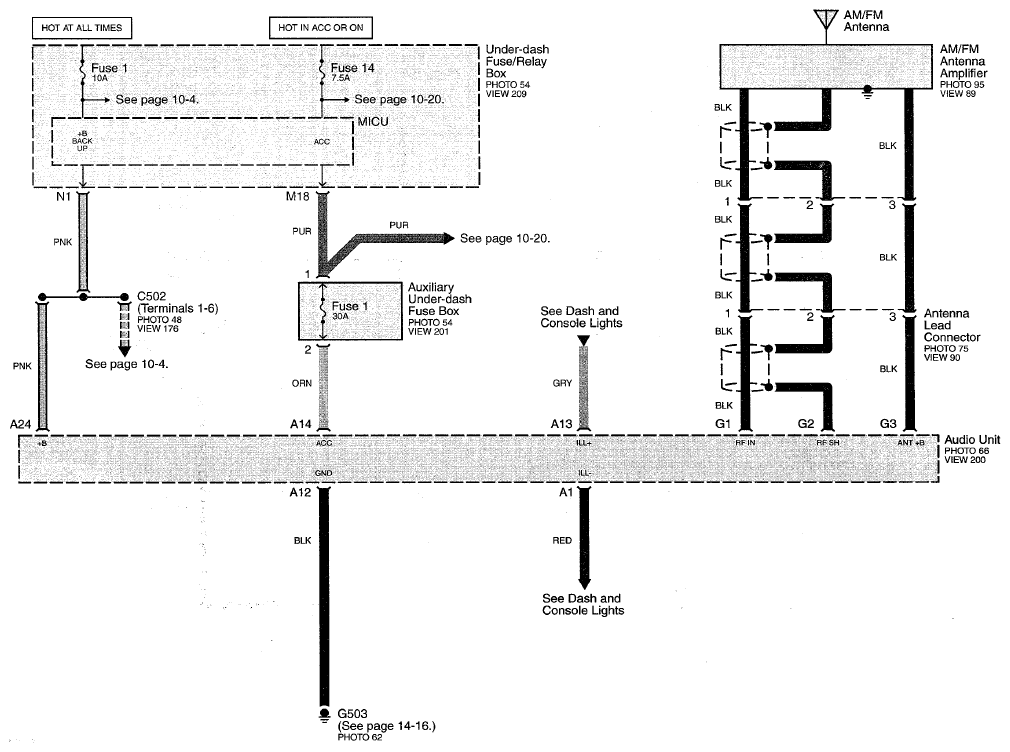

Fig 1: Audio System Circuit Diagram - Without Navigation (Page 150)
G07757740

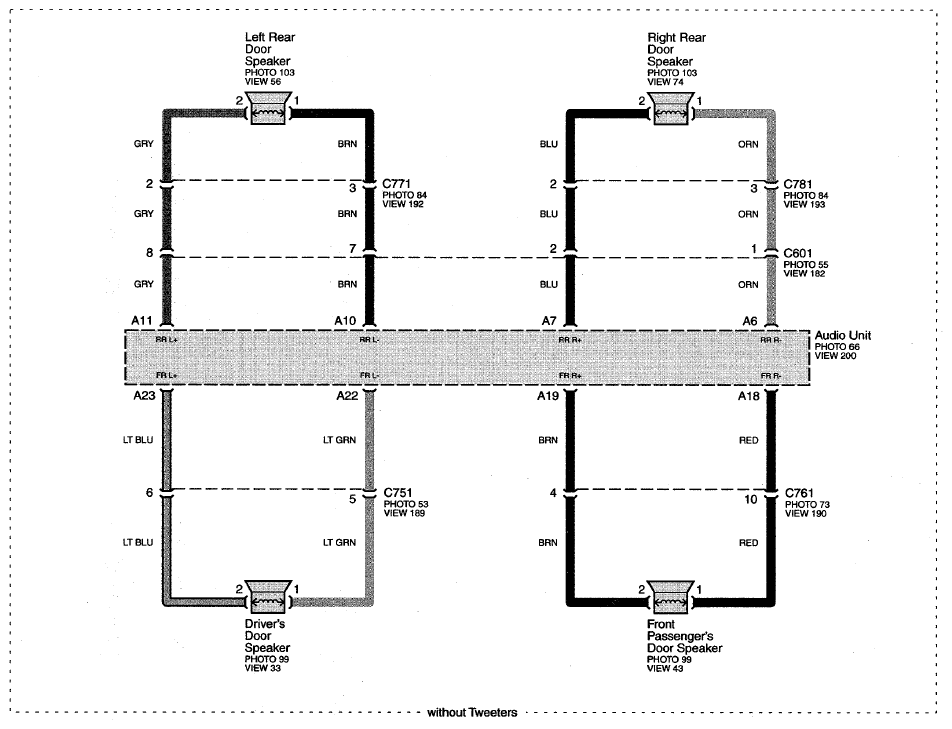

Fig 2: Audio System Circuit Diagram - Without Navigation (Page 150-1)
G07757741

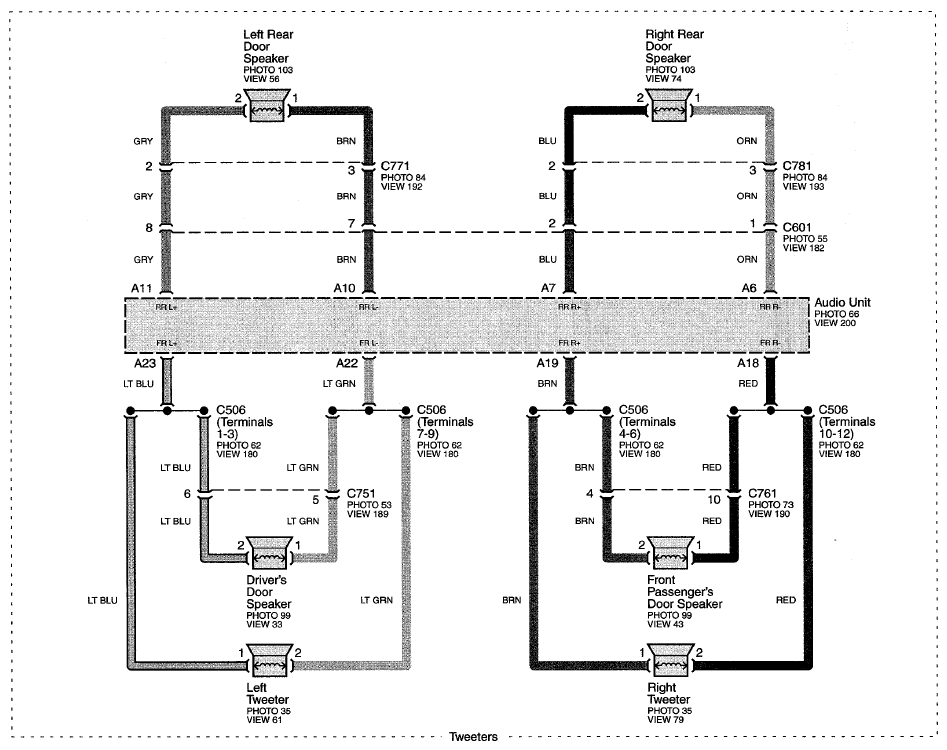

Fig 3: Audio System Circuit Diagram - Without Navigation (Page 150-2)
G07757742

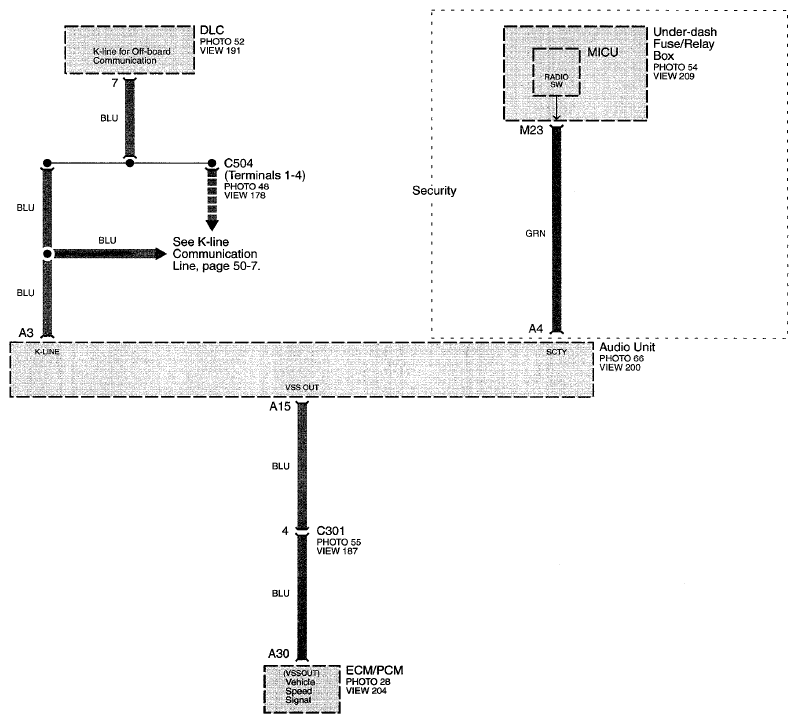

Fig 4: Audio System Circuit Diagram - Without Navigation (Page 150-3)
G07757743

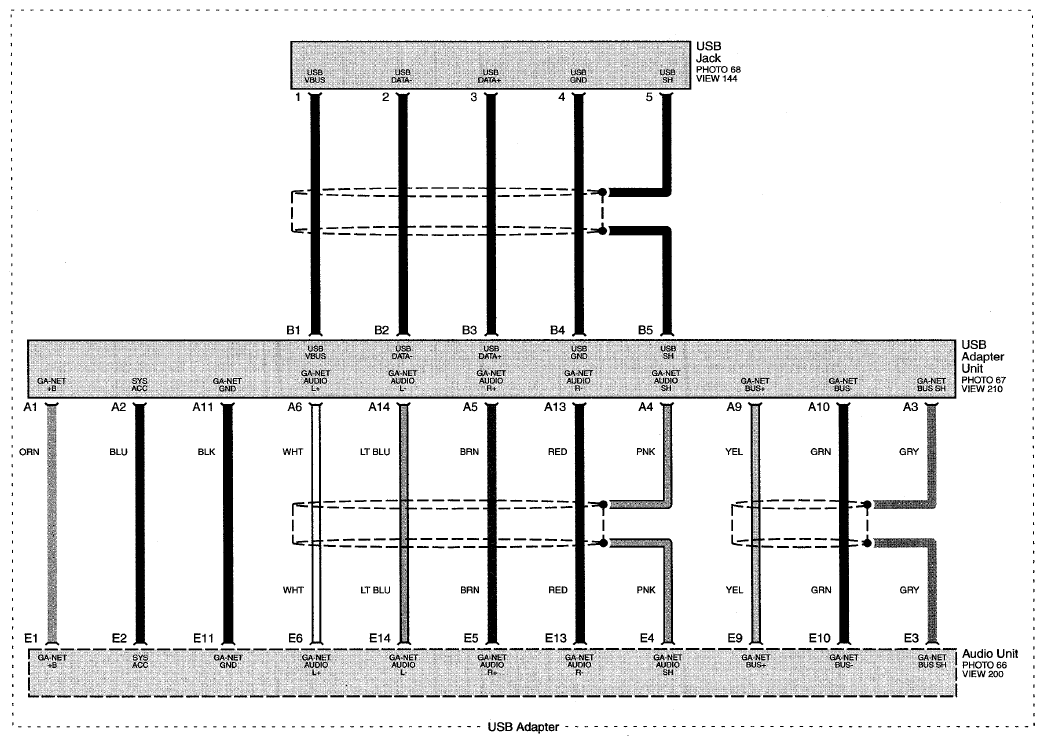

Fig 5: Audio System Circuit Diagram - Without Navigation (Page 150-4)
G07757744
