Home >> Honda >> 2011 >> Fit Base, Automatic >> Repair and Diagnosis (Single Page) >> Electrical >> Body Electrical >> OEM Circuit Diagrams >> Keyless/Power Door Lock System >> Notes

Keyless/Power Door Lock System: Notes

NOTE: For connector or component location "PHOTO", see OEM-COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

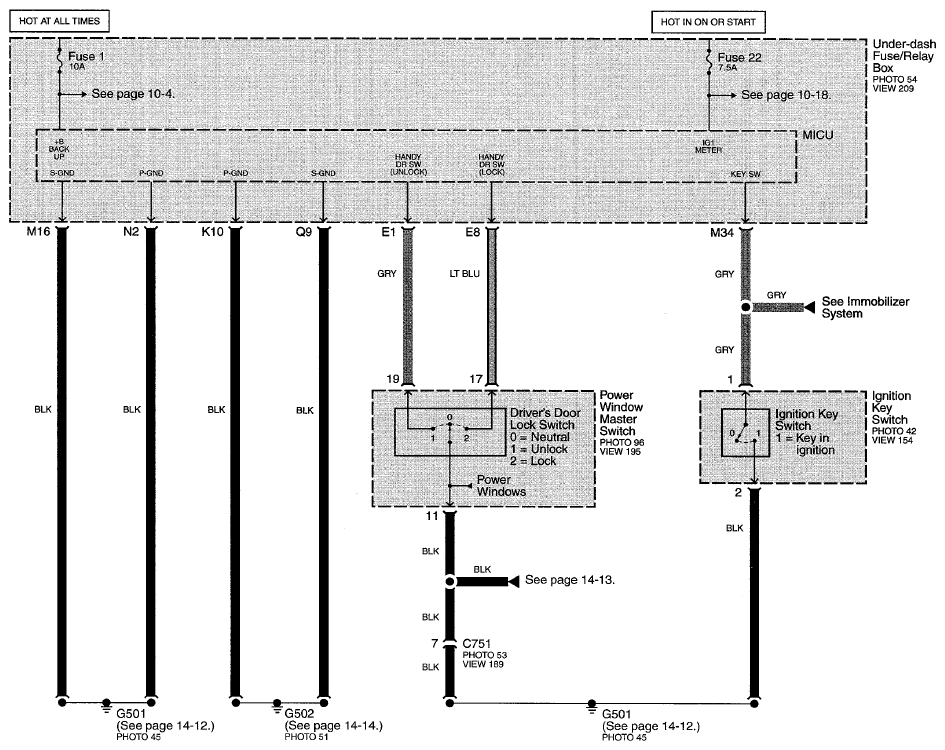

Fig 1: Keyless/Power Door Lock System Circuit Diagram (Page 130)
G07757719

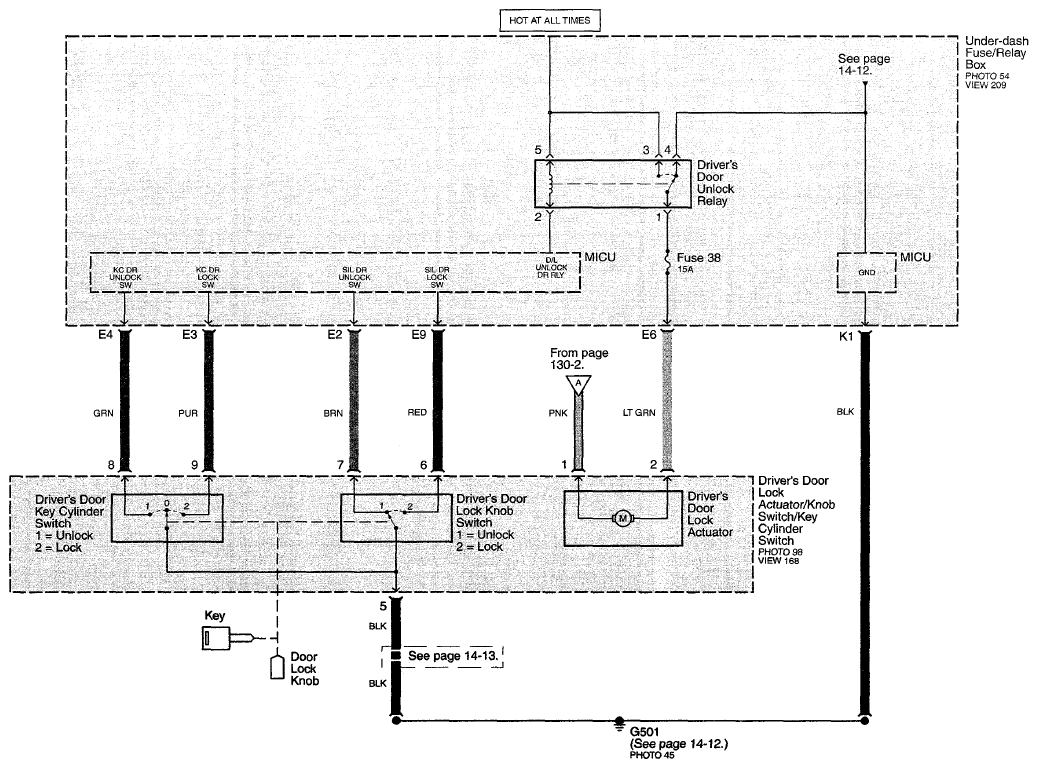

Fig 2: Keyless/Power Door Lock System Circuit Diagram (Page 130-1)
G07757720
Fig 3: Keyless/Power Door Lock System Circuit Diagram (Page 130-2)
G07757721

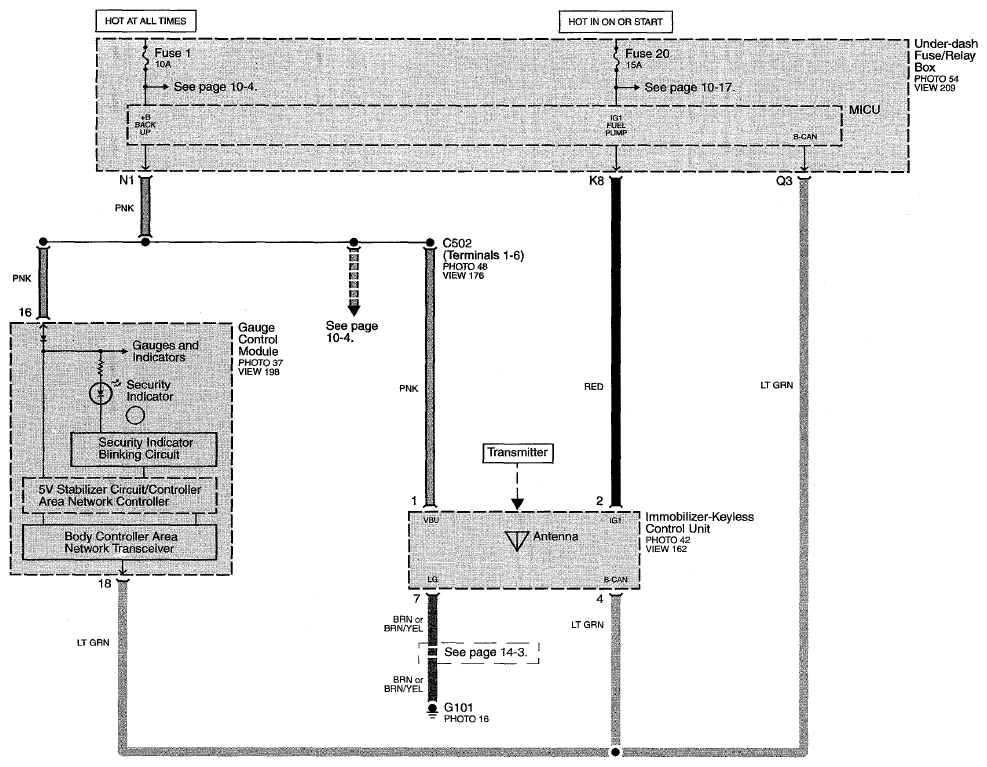

Fig 4: Keyless/Power Door Lock System Circuit Diagram (Page 130-3)
G07757722

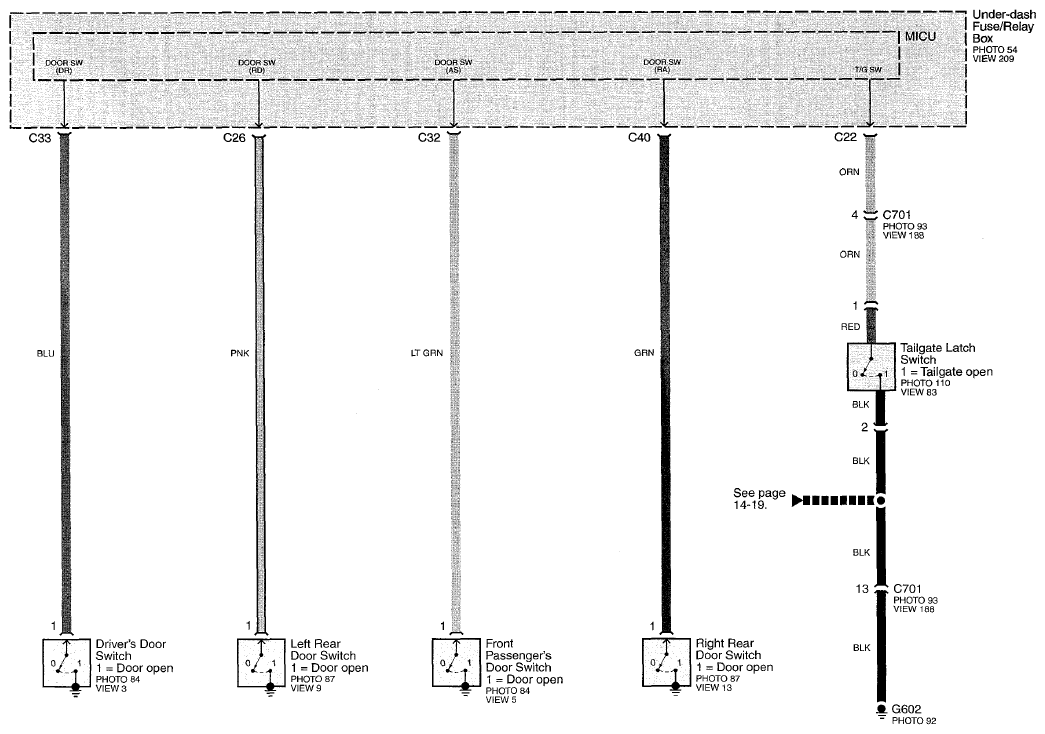

Fig 5: Keyless/Power Door Lock System Circuit Diagram (Page 130-4)
G07757723

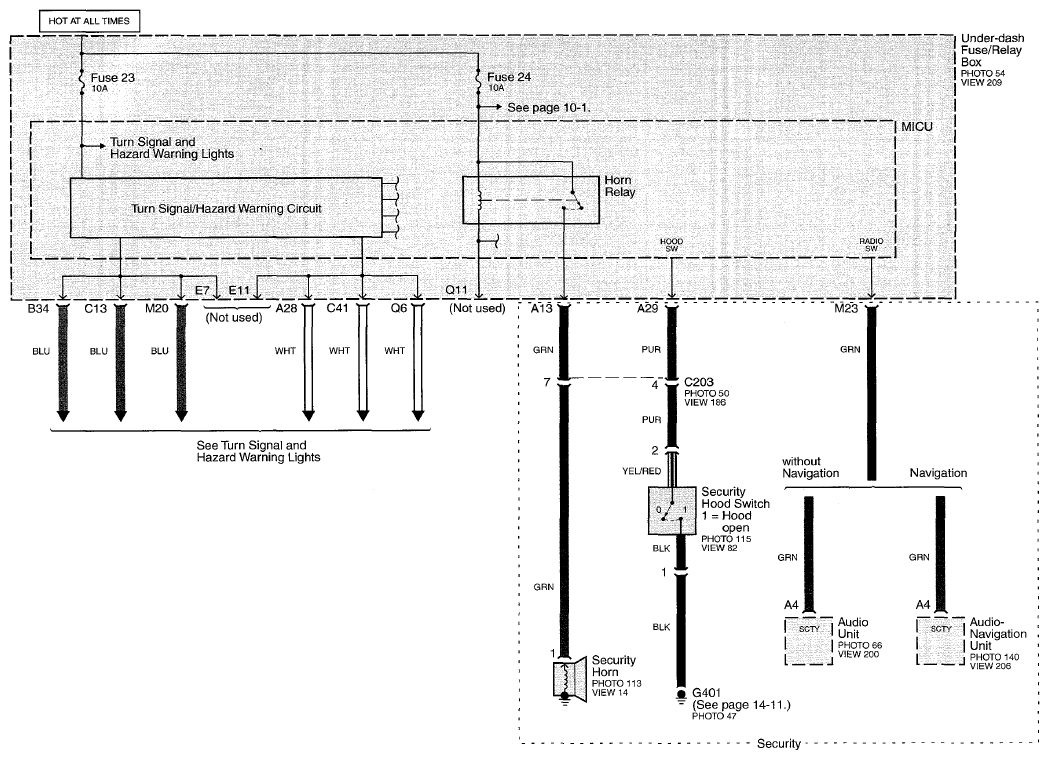

Fig 6: Keyless/Power Door Lock System Circuit Diagram (Page 130-5)
G07757724

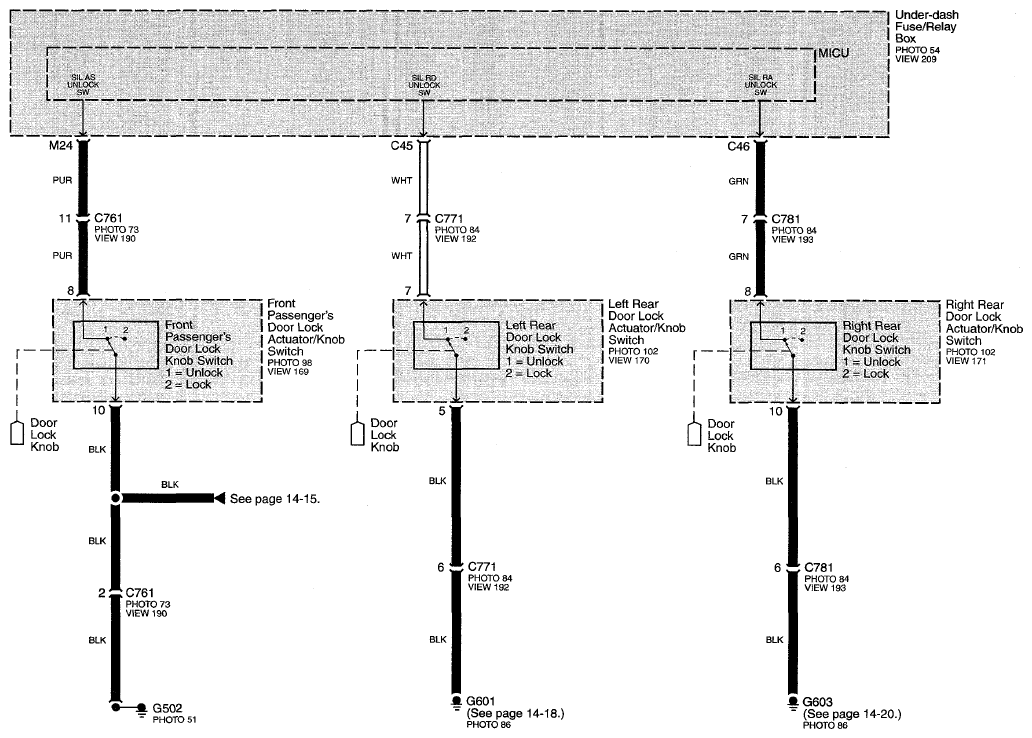

Fig 7: Keyless/Power Door Lock System Circuit Diagram (Page 130-6)
G07757725
