Unit Check (Quick Check): HFL

WARNING: This page is about a different variant/trim than selected.

This checks the 4 wire communication bus between the HFL and the navigation control unit.

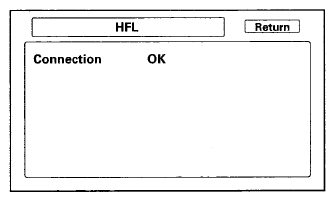

Fig 1: Display - HFL Connection

Courtesy of AMERICAN HONDA MOTOR CO., INC.
