Unit Check (Quick Check): Display

WARNING: This page is about a different variant/trim than selected.

This performs additional checks on the communication bus between the navi CPU and the navigation display. In addition, this test checks the internal electronic functions.

If the connection is NG, replace the navigation unit.

Connection verifies internal communications.
Version represents the software version for the display.

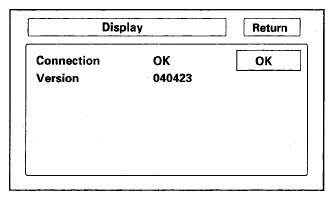

Fig 1: Display - Connection And Version Information
Courtesy of AMERICAN HONDA MOTOR CO., INC.
