Touch Panel Check 2

WARNING: This page is about a different variant/trim than selected.

If you touch the any icons on the screen, the icon color changes while pressing the icon. If any icons of the screen doesn't respond, replace the navigation unit.

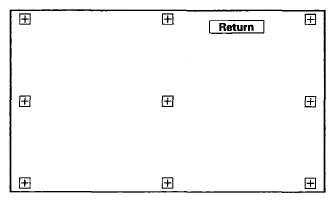

Fig 1: Display - Touch Panel Screen
G06229763Courtesy of AMERICAN HONDA MOTOR CO., INC.
