Navigation System Connector Location

WARNING: This page is about a different variant/trim than selected.

NOTE: Refer to the audio section for the connector G inputs and outputs (see AUDIO UNIT CONNECTOR FOR INPUTS AND OUTPUTS (WITH NAVIGATION) ).

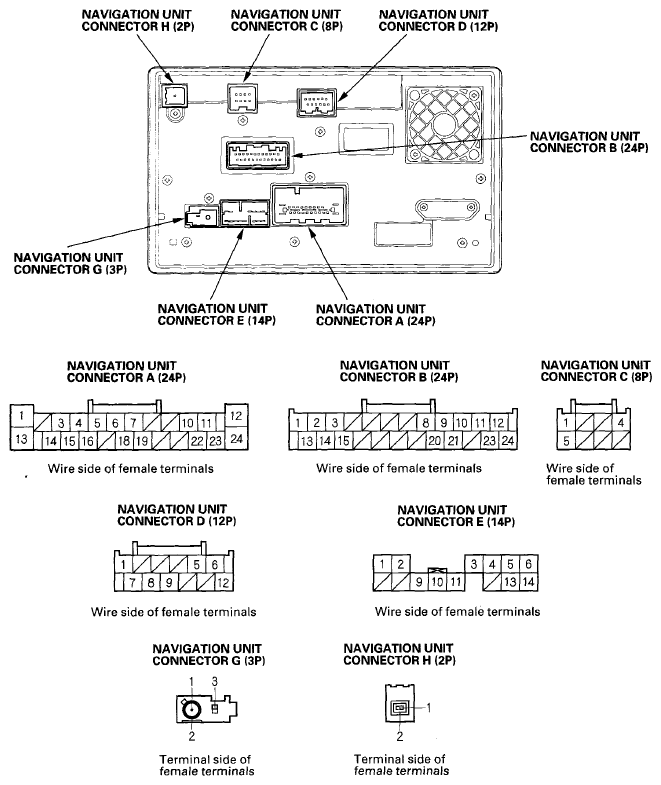

Fig 1: Identifying Navigation System Connector

Courtesy of AMERICAN HONDA MOTOR CO., INC.
