Section 94 (Navigation System (Hybrid))
>>
System Description
>>
Navigation Function
>>
Function Diagram
Function Diagram
WARNING:
This page is about a different variant/trim than selected.

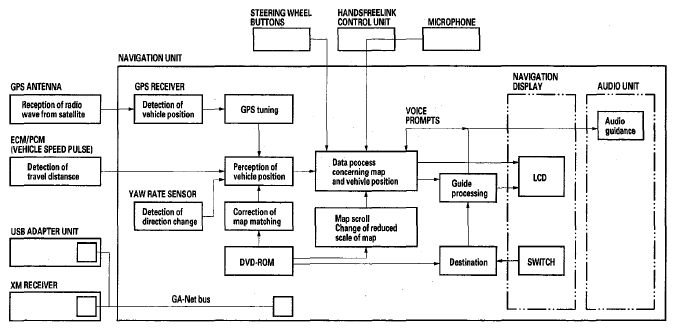

Fig 1: Navigation Function Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
