HFL-Navigation Microphone Removal/Installation

WARNING: This page is about a different variant/trim than selected.
  1. Remove the front individual map light lens (A) and bolts.

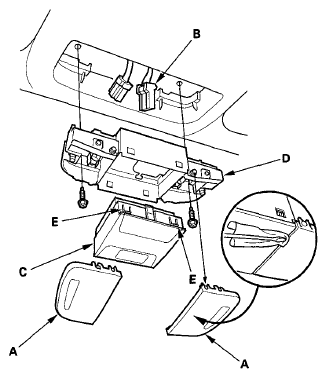

    Fig 1: Identifying Front Individual Map Light Lens, 10P Connector With Mounting Bolts
    G06229824Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Disconnect the 10P connector (B) from the microphone.
  3. Carefully pry off the microphone (C) from the map light housing (D) while pressing in on the retaining tabs (E).
  4. Install the microphone in the reverse order removal.
