How to Check Error History: Notes

The Error History feature is to record intermittent navigation issues that occur while using the system. Sometimes the customer complaint cannot be duplicated. The error history may record the information needed to diagnose the problem. To check the error history:

1. Start the engine.
2. Press and hold the MAP/GUIDE, MENU, and. CANCEL buttons for 3 seconds.
3. When the Select Diagnosis Items menu is displayed, select Detail Information & Setting.

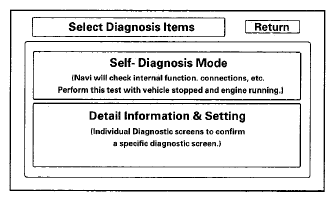

   Fig 1: Display - Detail Information & Setting

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. When the navigation unit has hard codes, the Error History icon appears yellow when the Self Diagnosis mode (System links) screen is displayed. When no hard errors are stored, the icon appears gray. To view the errors with their DTC codes, select the error history icon.

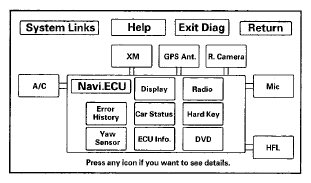

   Fig 2: Display - Self Diagnosis Mode (System Links) Screen

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Select Hard Error.
   NOTE: Soft errors are for factory use only.

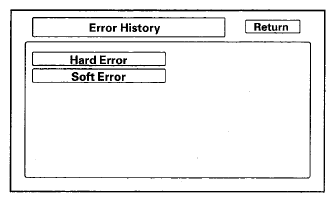

   Fig 3: Selecting Hard Error

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

   Hardware Error History

6. The Hard Error screen displays the following information for each error:
   • The DTC trouble code for the error
   • A brief description of the DTC code
   • The date and time when the error occurred.
     NOTE:

     • To see additional errors, use the interface dial to select UP or DOWN.
     • Select Clear to delete the error history. The Save feature is for factory use only.
7. Use the DTC Symptom Troubleshooting table to troubleshoot the error.

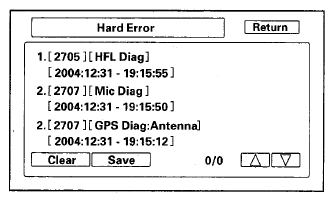

   Fig 4: Display - Error History

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
8. Clear the DTCs.
9. Select Return to exit the error history.

   Software Error (Soft error) History

   Software errors are not available. They are for factory use only.
