MICU Input Test

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • Before testing the entry lights control system, troubleshoot the system using B-CAN System Diagnosis Test Mode A (see TROUBLESHOOTING - B-CAN SYSTEM DIAGNOSIS TEST MODE A ).
  • Check the No. 10 (7.5 A) fuse in the under-dash fuse/relay box. If any fuse is blown, replace it and go to step  2.
  1. Turn the ignition switch to LOCK (0).
  2. Disconnect driver's under-dash fuse/relay box connectors E, F, K, R, and T.
    NOTE: All connector views are shown from wire side of female terminals.

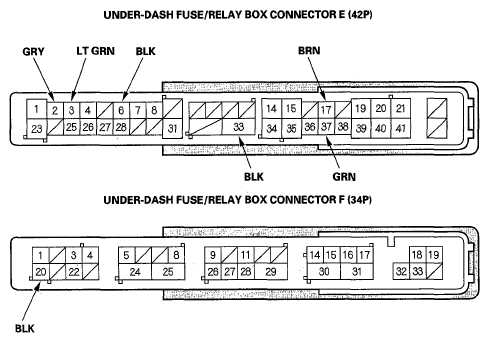

    Fig 1: Identifying Driver Under-Dash Fuse/Relay Box Connectors E, F, K, R & T (1 Of 2)
    G05534415Courtesy of AMERICAN HONDA MOTOR CO., INC.

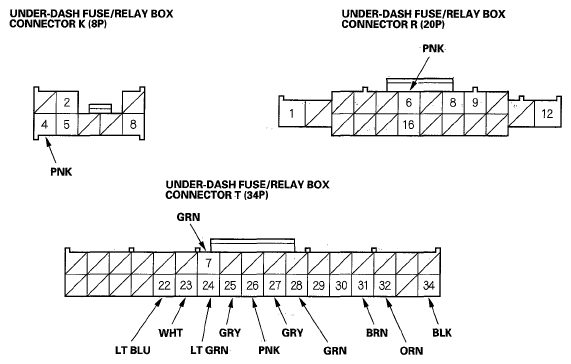

    Fig 2: Identifying Driver Under-Dash Fuse/Relay Box Connectors E, F, K, R & T (2 Of 2)
    G05534416Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Inspect the connector and socket terminals to be sure they are all making good contact.
    • If the terminals are bent, loose or corroded, repair them as necessary and recheck the system.
    • If the terminals look OK, go to step  4.
  4. With the connectors still disconnected, make these input tests at the connector.
    • If any test indicates a problem, find and correct the cause, then recheck the system.
    • If all the input tests prove OK, go to step  5.
    WIRE CAVITY TABLE

    Cavity Wire Test condition Test: Desired result Possible cause if desired result is not obtained
    K4 PNK With the ceiling light switch in the middle position Attach to ground:
    The ceiling light and front individual map lights (with moonroof) should come on.
    • Blown No. 22 (7.5 A) fuse in the under-hood fuse/relay box
    • Blown bulb(s)
    • Faulty ceiling light
    • Faulty front individual map light
    • An open in the wire
  5. Reconnect the connectors to the under-dash fuse/relay box, and make these input tests at the connector.
    • If any test indicates a problem, find and correct the cause, then recheck the system.
    • If all the input tests prove OK, the MICU must be faulty; replace the under-dash fuse/relay box.
    WIRE CAVITY TABLE

    Cavity Wire Test condition Test: Desired result Possible cause if desired result is not obtained
    E6 BLK Under all conditions Measure the voltage to ground:
    There should be less than 0.2 V.
    • Poor ground (G602)
    • An open in the wire
    E33 BLK Under all conditions Measure the voltage to ground:
    There should be less than 0.2 V.
    • Poor ground (G601)
    • An open in the wire
    F20 BLK Under all conditions Measure the voltage to ground:
    There should be less than 0.2 V.
    • Poor ground (G401)
    • An open in the wire
    T34 BLK Under all conditions Measure the voltage to ground:
    There should be less than 0.2 V.
    • Poor ground (G501)
    • An open in the wire
    E2 GRY Right rear door open Measure the voltage to ground:
    There should be less than 0.2 V.
    • Faulty right rear door switch
    • An open in the wire
    Right rear door closed Measure the voltage to ground:
    There should about 5 V.
    • Faulty right rear door switch
    • A short to ground in the wire
    E3 LTGRN Front passenger's door open Measure the voltage to ground:
    There should be less than 0.2 V.
    • Faulty front passenger's door switch
    • An open in the wire
    Front passenger's door closed Measure the voltage to ground:
    There should about 5 V.
    • Faulty front passenger's door switch
    • A short to ground in the wire
    E17 BRN Left rear door open Measure the voltage to ground:
    There should be less than 0.2 V.
    • Faulty left rear door switch
    • An open in the wire
    Left rear door closed Measure the voltage to ground:
    There should about 5 V.
    • Faulty left rear door switch
    • A short to ground in the wire
    E37 GRN Driver's door open Measure the voltage to ground:
    There should be less than 0.2 V.
    • Faulty driver's door switch
    • An open in the wire
    Driver's door closed Measure the voltage to ground:
    There should about 5 V.
    • Faulty driver's door switch
    • A short to ground in the wire
    R6 PNK Ignition key inserted into the ignition switch Measure the voltage to ground:
    There should be less than 0.2 V.
    • Poor ground (G504)
    • Faulty ignition key switch
    • An open in the wire
    Ignition switch to LOCK (0) and ignition key removed from the ignition switch Measure the voltage to ground:
    There should about 5 V.
    • Faulty ignition key switch
    • A short to ground in the wire
    T23 WHT Driver's door lock knob switch unlocked Measure the voltage to ground:
    There should be less than 0.2 V.
    • Poor ground (G501)
    • Faulty driver's door lock knob switch
    • An open in the wire
