Cruise Control Combination Switch Test/Replacement

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX and PRECAUTIONS AND PROCEDURES before doing repairs or service.

1. Remove the driver's airbag (see DRIVER'S AIRBAG REPLACEMENT ).
2. Remove the eight screws.
   Fig 1: Identifying Driver Airbag Screws

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Remove the combination switch (A).

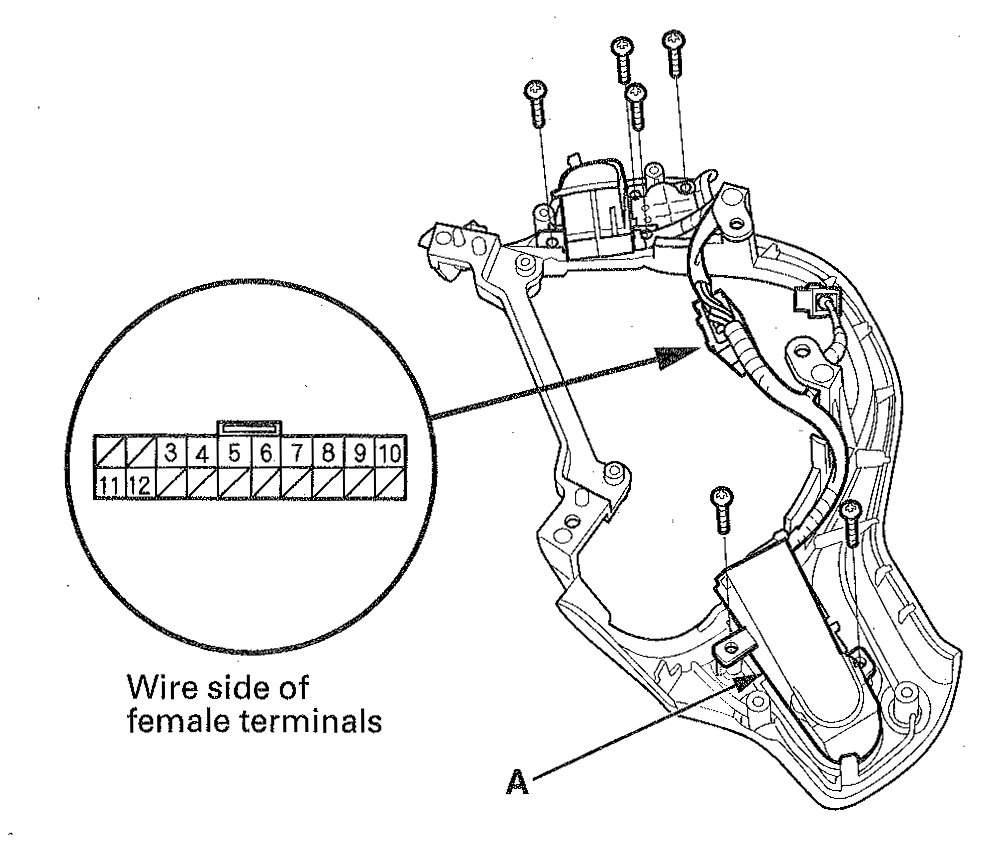

   Fig 2: Identifying Combination Switch & Terminals

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Check for continuity between the terminals in each switch position according to the table below.
   • If there is continuity, and it matches the table, but switch failure occurred on the cruise control input test, check and repair the wire harness on the switch circuit.
   • If there is no continuity in one or more positions, replace the switch.

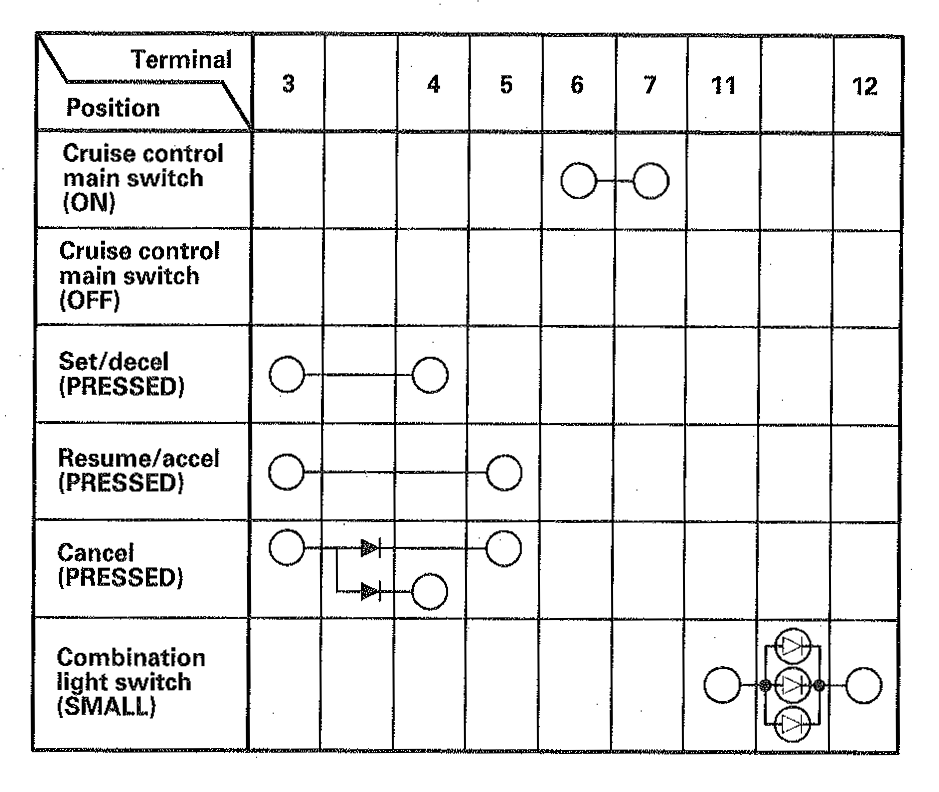

     Fig 3: Identifying Terminals Continuity Table

     Courtesy of AMERICAN HONDA MOTOR CO., INC.
