Engine Mount Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Remove the PCM PCM REPLACEMENT .
  2. Remove the air cleaner AIR CLEANER REMOVAL/INSTALLATION .
  3. Remove the IMA system power cable clamps (A) and the reservoir tank mounting bolt (B).

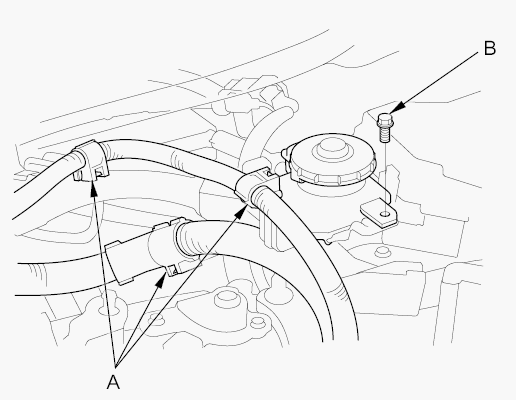

    Fig 1: IMA System Power Cable Clamps And The Reservoir Tank Mounting Bolt
    G00513036Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the wire harness clamps (A).

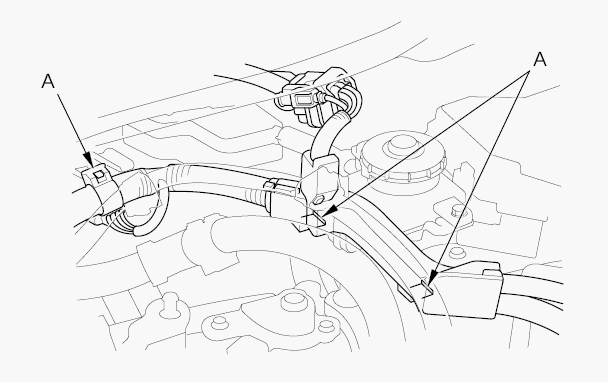

    Fig 2: Wire Harness Clamps
    G00513037Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the reservoir tank bracket (A).

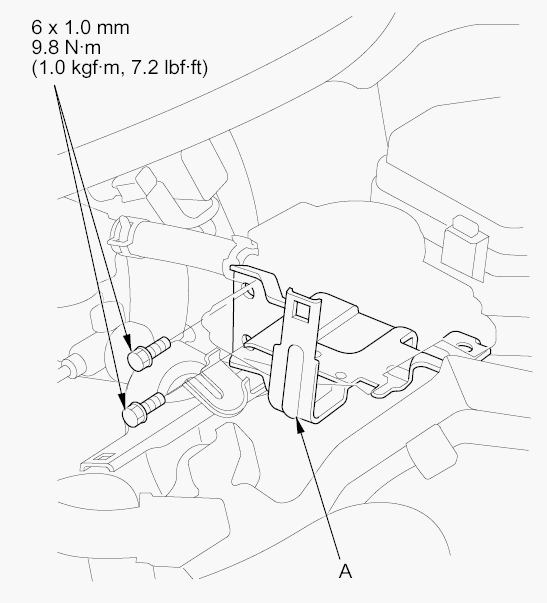

    Fig 3: Reservoir Tank Bracket
    G00513038Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the under-hood fuse/relay box UNDER-HOOD FUSE/RELAY BOX (HYBRID) .
  7. Lift and support the engine with a jack and a wood block under the engine/IMA/transmission.
  8. Remove the transmission mount cover (A) and the bracket (B), then remove the transmission mount (C).

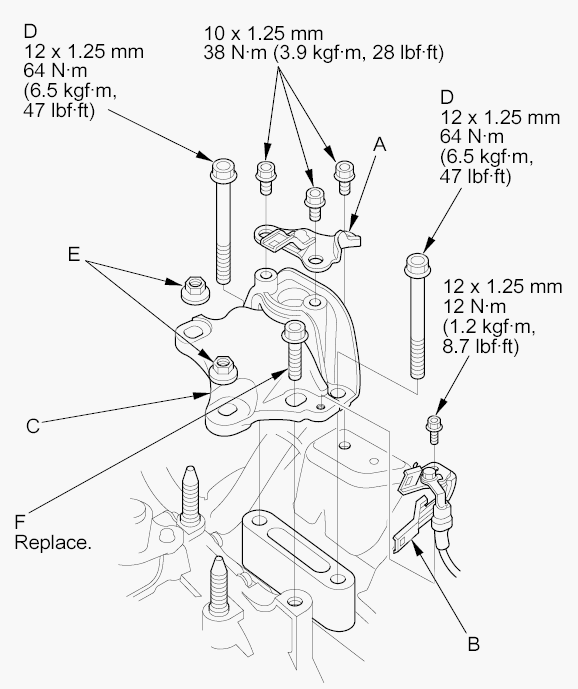

    Fig 4: Transmission Bracket And Transmission Mount.
    G00513039Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Tighten the transmission mount mounting bolts (D) and loosely install the transmission mount bracket support nuts (E) and the new support bolt (F).
  10. Install the transmission mount cover and the bracket.
  11. Remove the jack and the wood block.
  12. Raise the vehicle on the lift.
  13. Remove the five clips and the two bolts securing the front undercover, then open the front undercover FRONT UNDERCOVER REPLACEMENT .
  14. Loosen the lower torque rod mounting bolts (A).

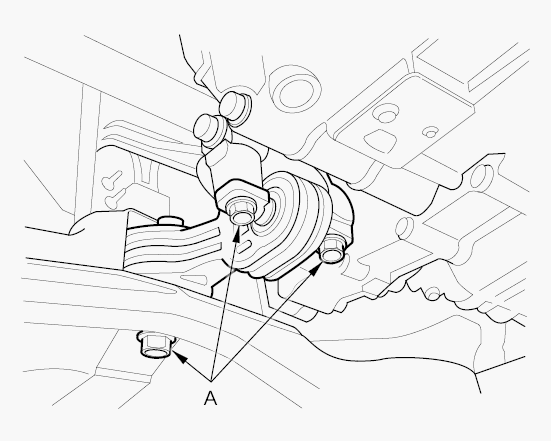

    Fig 5: Lower Torque Rod Mounting Bolts
    G00513040Courtesy of AMERICAN HONDA MOTOR CO., INC.
  15. Lower the vehicle on the lift.
  16. Tighten the transmission mount bracket support bolt and nuts.

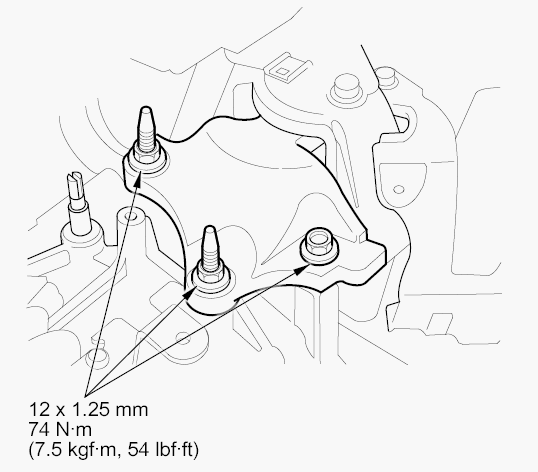

    Fig 6: Transmission Mount Bracket Support Bolt And Nuts
    G00513041Courtesy of AMERICAN HONDA MOTOR CO., INC.
  17. Raise the vehicle on the lift.
  18. Tighten the lower torque rod mounting bolts in the numbered sequence shown.

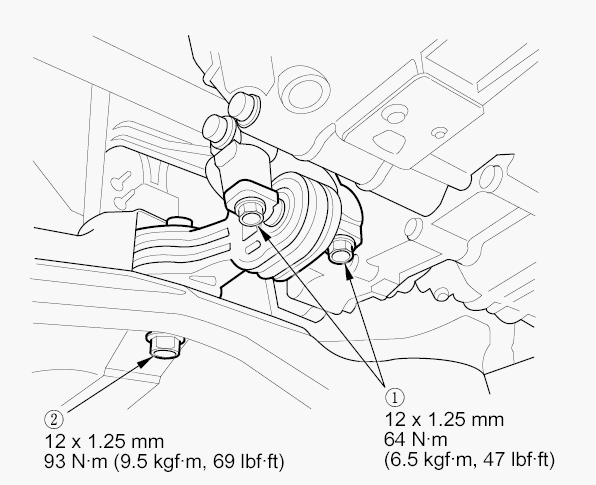

    Fig 7: Lower Torque Rod Mounting Bolts Tightening Sequence
    G00513042Courtesy of AMERICAN HONDA MOTOR CO., INC.
  19. Install the front undercover, the five clips and the two bolts securing the front undercover, then close the front undercover FRONT UNDERCOVER REPLACEMENT .
  20. Lower the vehicle on the lift.
  21. Install the under hood fuse/relay box UNDER-HOOD FUSE/RELAY BOX (HYBRID) .
  22. Install the reservoir tank bracket (A).

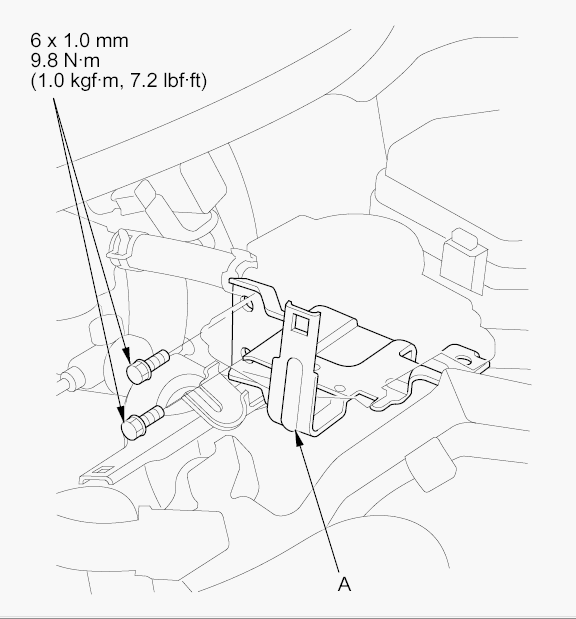

    Fig 8: Reservoir Tank Bracket
    G00513043Courtesy of AMERICAN HONDA MOTOR CO., INC.
  23. Install the wire harness clamps.

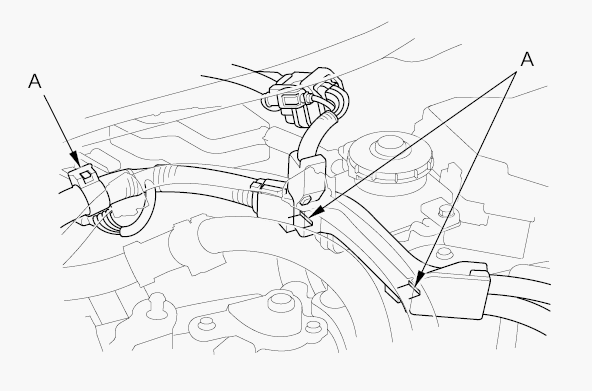

    Fig 9: Wire Harness Clamps
    G00513044Courtesy of AMERICAN HONDA MOTOR CO., INC.
  24. Install the IMA system power cable clamps (A) and the reservoir tank mounting bolt (B).

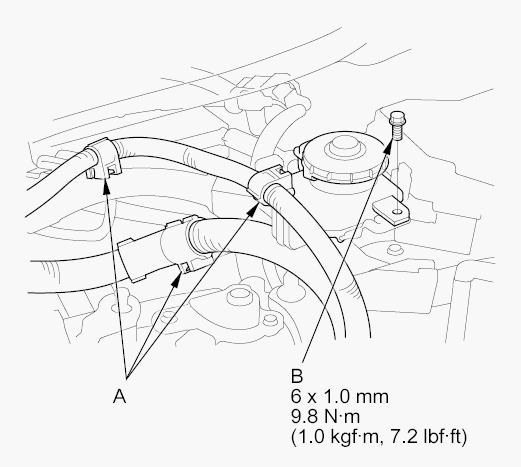

    Fig 10: IMA System Power Cable Clamps And The Reservoir Tank Mounting Bolt
    G00513045Courtesy of AMERICAN HONDA MOTOR CO., INC.
  25. Install the air cleaner AIR CLEANER REMOVAL/INSTALLATION .
  26. Install the PCM PCM REPLACEMENT .
  27. Do the PCM reset procedure PCM RESET .
  28. Do the crankshaft position (CKP) pattern clear/CKP pattern learn procedure CRANK (CKP) PATTERN CLEAR/CRANK (CKP) PATTERN LEARN .
  29. Inspect the idle speed IDLE SPEED INSPECTION .
