Section 13 (Cruise Control Systems (K20Z3 Engine))
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

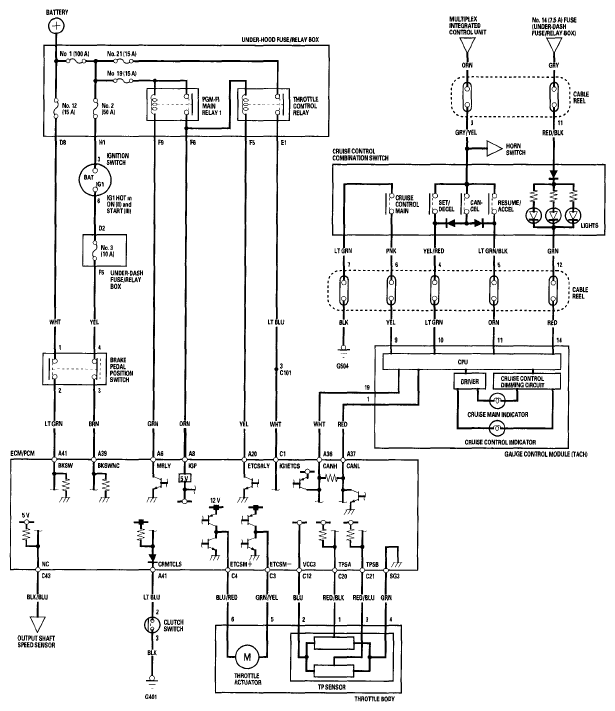

Fig 1: Cruise Control - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
