XM Receiver Removal/Installation

WARNING: This page is about a different variant/trim than selected.
  1. Open the trunk lid and remove the right trunk side trim panel (see TRIM REMOVAL/INSTALLATION - TRUNK AREA ).
  2. Disconnect connectors (A) from the XM receiver (B).

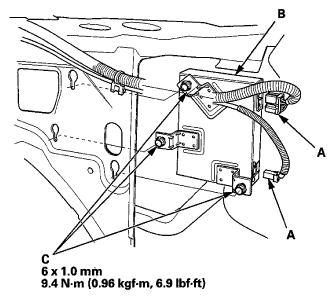

    Fig 1: XM Receiver And Connectors With Torque Specifications
    G06959345Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Loosen the three bolts (C), and remove the XM receiver.
  4. Install the XM receiver in the reverse order of removal.
