Water Pump Replacement

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2009 Honda S2000, 2008 Honda S2000, 2007 Honda S2000, 2006 Honda S2000, and 2005 Honda S2000. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the engine coolant (see COOLANT REPLACEMENT  ).
  2. Loosen the water pump pulley bolts.
  3. Remove the drive belt (see DRIVE BELT REPLACEMENT ).
  4. Remove the water pump pulley.
  5. Remove the water pump (A) by removing the six bolts.

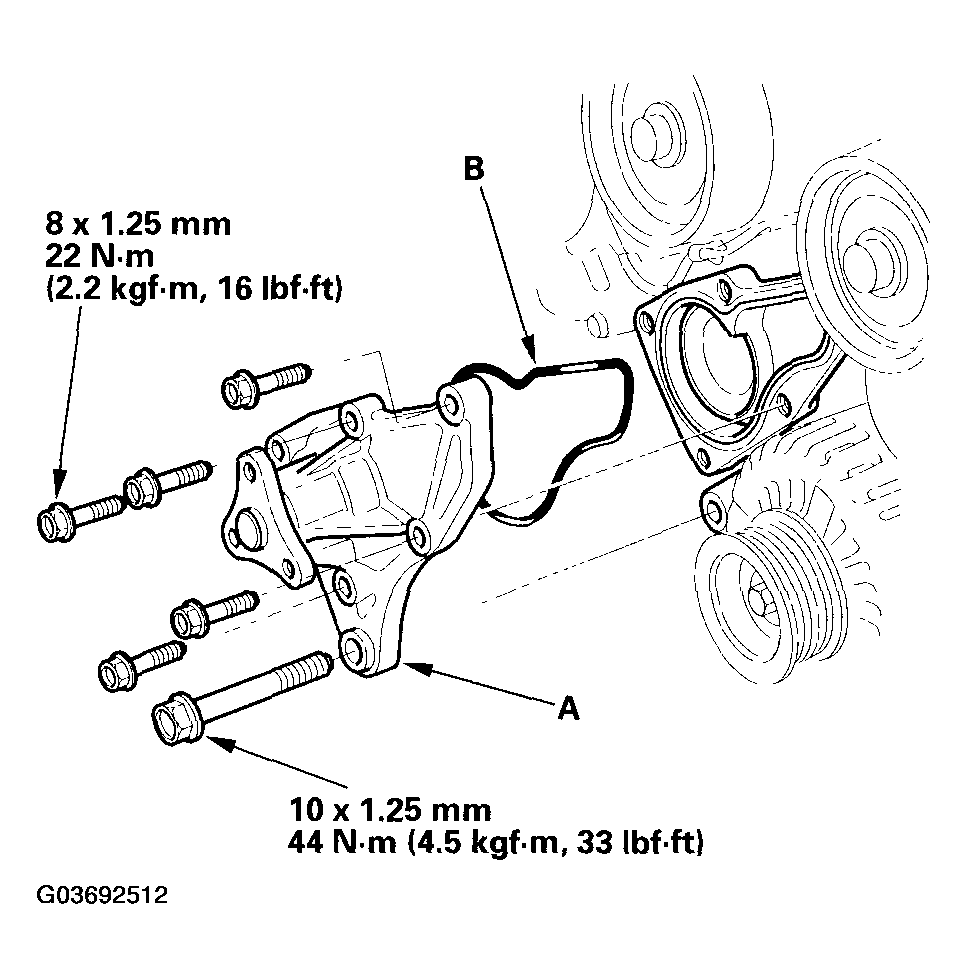

    Fig 1: Water Pump With Torque Specifications
    G03692512Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Clean and inspect the O-ring groove and the mating surface with the thermostat housing.
  7. Install the water pump, with a new O-ring (B), in the reverse order of removal.
  8. Refill the radiator with engine coolant, then bleed the air from the cooling system (see step  8 ).
  9. Clean up any spilled engine coolant.
