Home >> Honda >> 2011 >> Civic GX >> Repair and Diagnosis >> Engine Performance >> Tune-Up >> Ignition System (R18A1 Engine) >> Component Location Index

Component Location Index

NOTE: Go to IGNITION SYSTEM (SUPPLEMENTAL) (GX) article for additional information for the GX model.

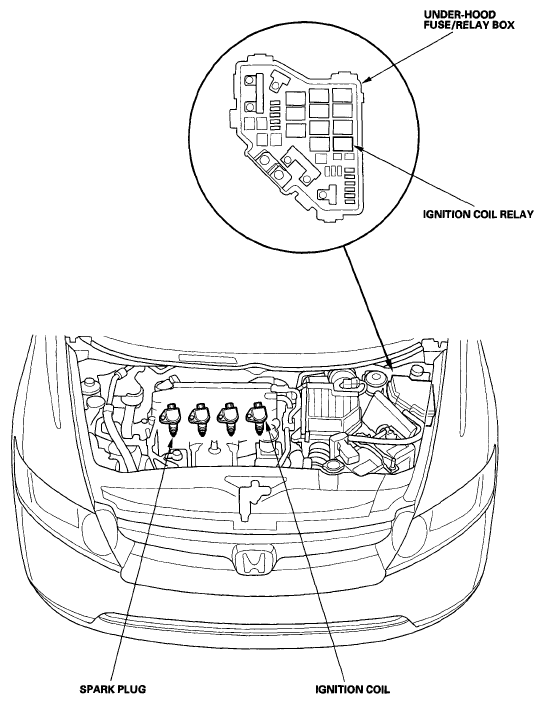

Fig 1: Identifying Ignition System Components
G04664157Courtesy of AMERICAN HONDA MOTOR CO., INC.
