Spark Plug Inspection

Remove the ignition coils and the spark plugs, refer to IGNITION COIL AND SPARK PLUG REMOVAL/INSTALLATION ).
Inspect the electrodes and the ceramic insulator.
- Burned or worn electrodes may be caused by these conditions:
  - Advanced ignition timing
  - Loose spark plug
  - Plug heat range too hot
  - Insufficient cooling
- Fouled plugs may be caused by these conditions:
  - Retarded ignition timing
  - Oil in combustion chamber
  - Incorrect spark plug gap
  - Plug heat range too cold
  - Excessive idling/low speed running
  - Clogged air cleaner element
  - Deteriorated ignition coils

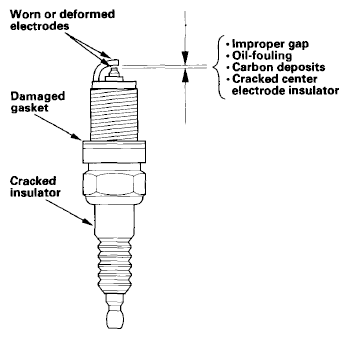

    Fig 1: Inspecting Spark Plug
    Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the spark plug electrode is dirty or contaminated, clean the electrode with a plug cleaner.
NOTE:
- Do not use a wire brush or scrape the iridium electrode since this will damage the electrode.
- When using a sand blaster spark plug cleaner, do not clean for more than 20 seconds to avoid damaging the electrode.
Replace the plug at the specified interval, or if the center electrode is rounded (A), or if the spark plug gap (B) is out of specification. Use only the spark plugs listed.
NOTE: Do not adjust the gap of iridium tip plugs.

Spark Plug

IFR7F-8DS

Electrode Gap

Standard (New): 0.7-0.8 mm (0.028-0.031 in)

Fig 2: Measuring Spark Plug Electrode Gap
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Apply a small amount of anti-seize compound to the plug threads, and screw the plugs into the cylinder head, finger-tight. Torque them to 25 N.m (2.5 kgf.m, 18 lbf.ft).
