Wiper/Washer Switch Connector End View

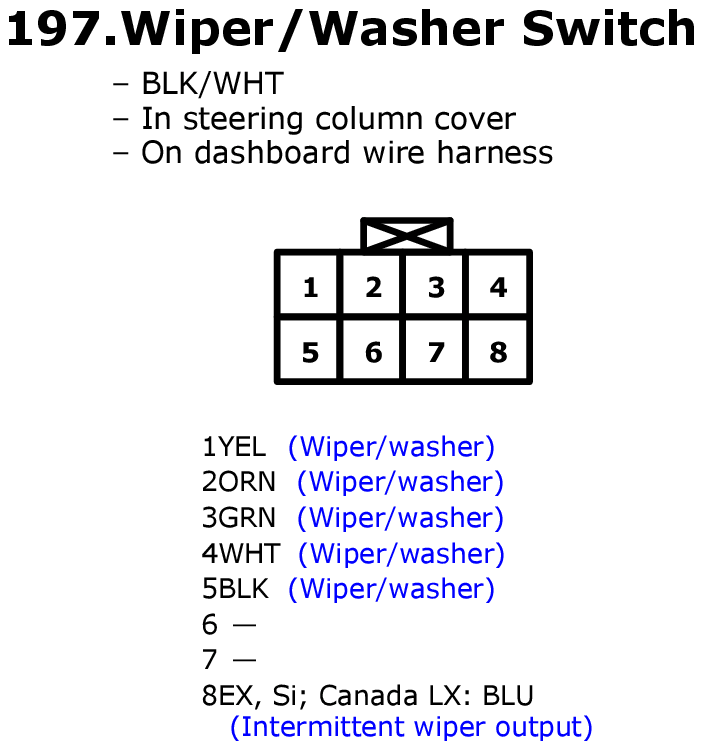

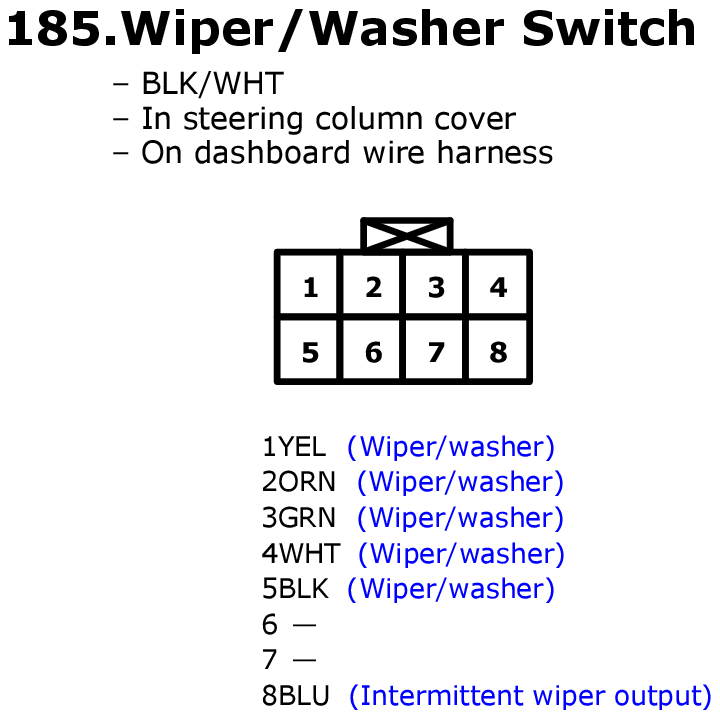

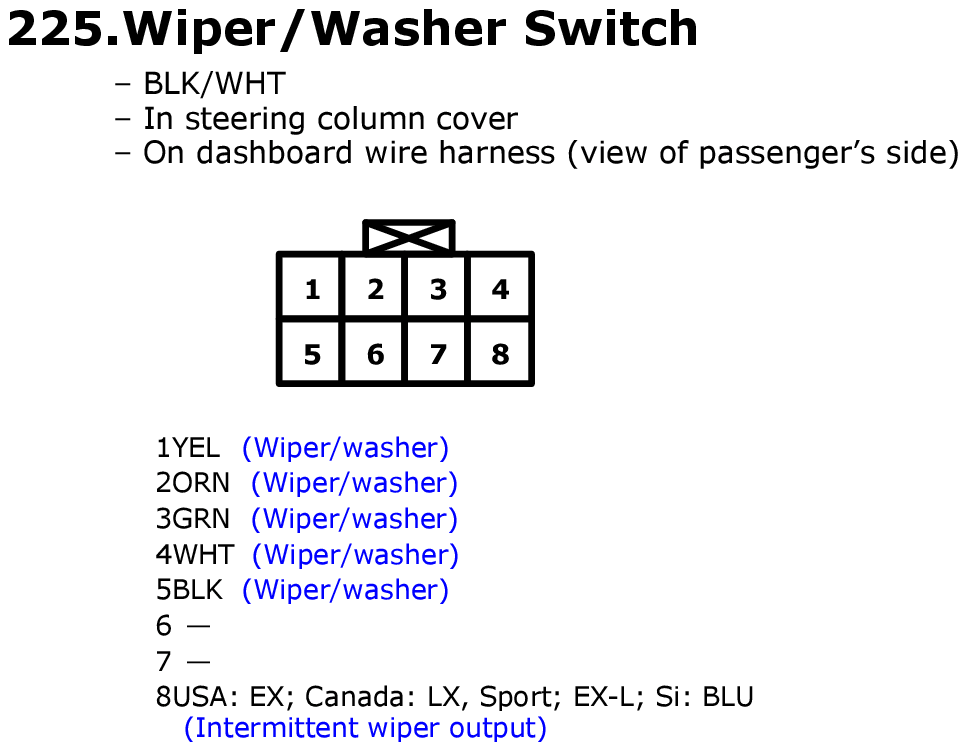

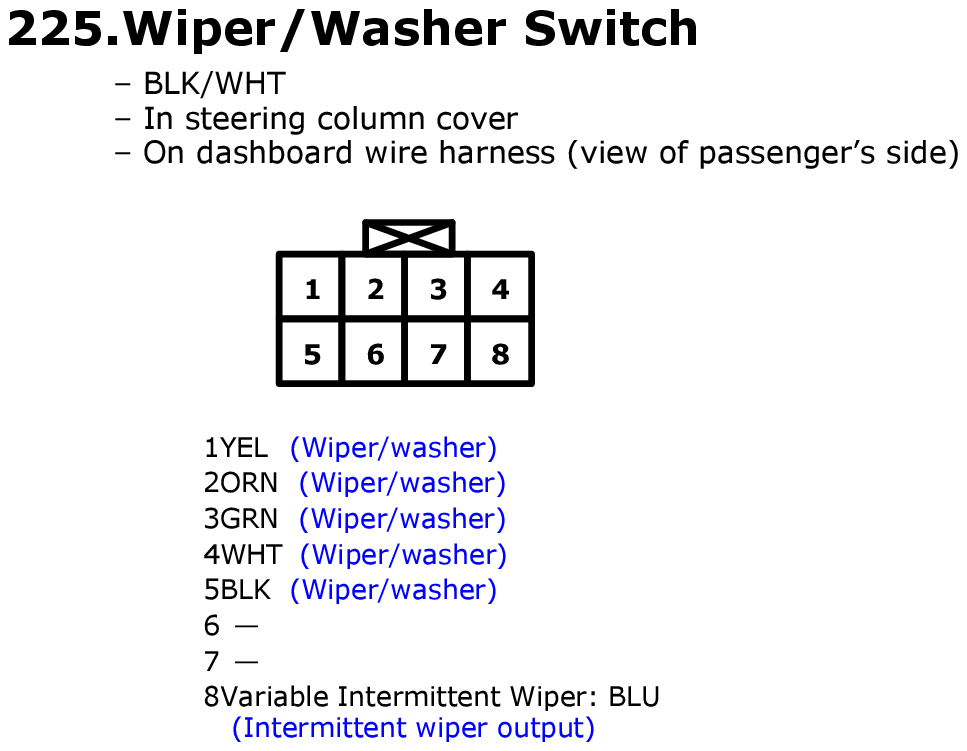

Fig 1: Wiper/Washer Switch Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 1: Wiper/Washer Switch Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 1: Wiper/Washer Switch Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 1: Wiper/Washer Switch Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 1: Wiper/Washer Switch Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 1: Wiper/Washer Switch Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.
