Under-hood Fuse/Relay Box Connector End View

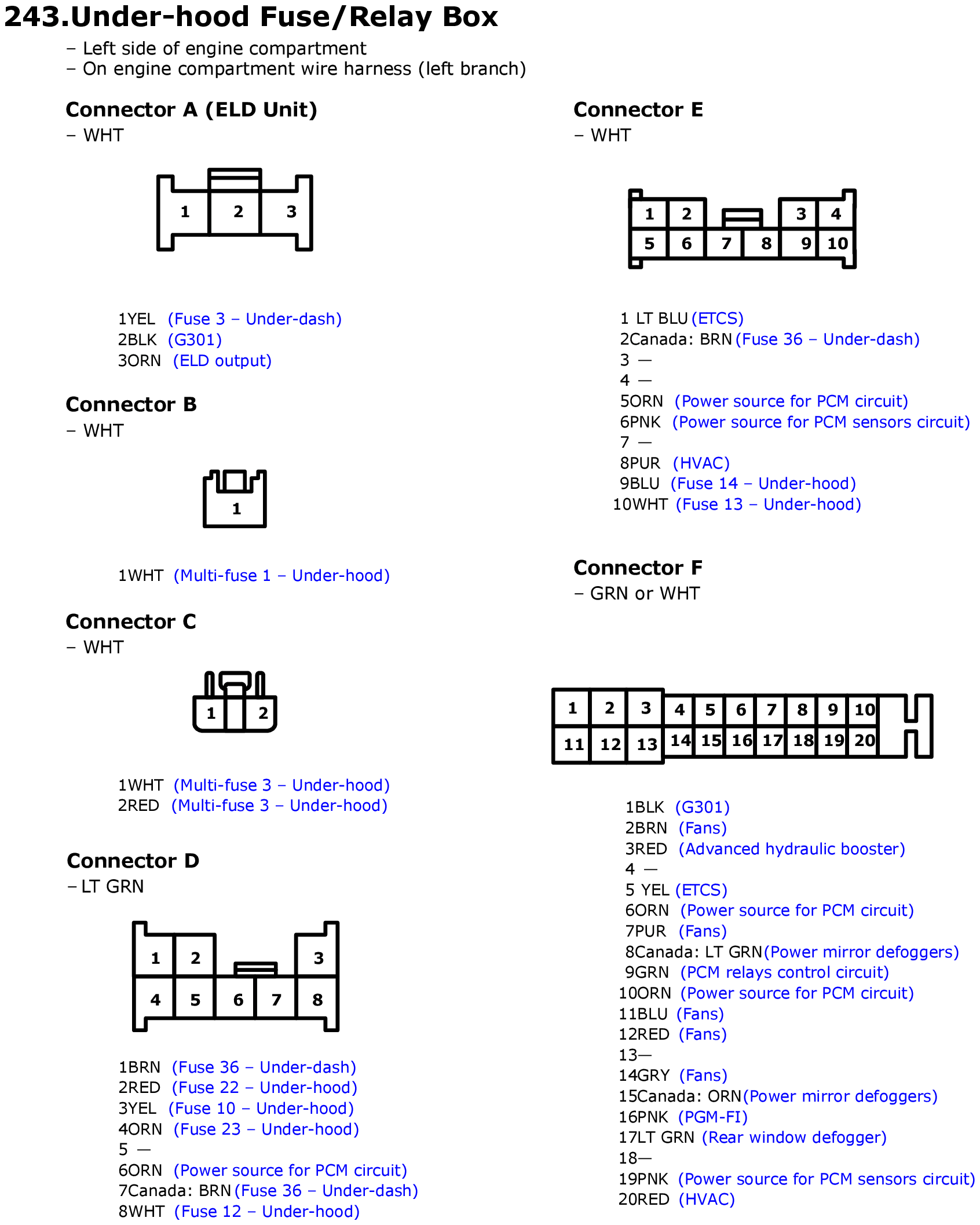

Fig 1: Under-hood Fuse/Relay Box Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.

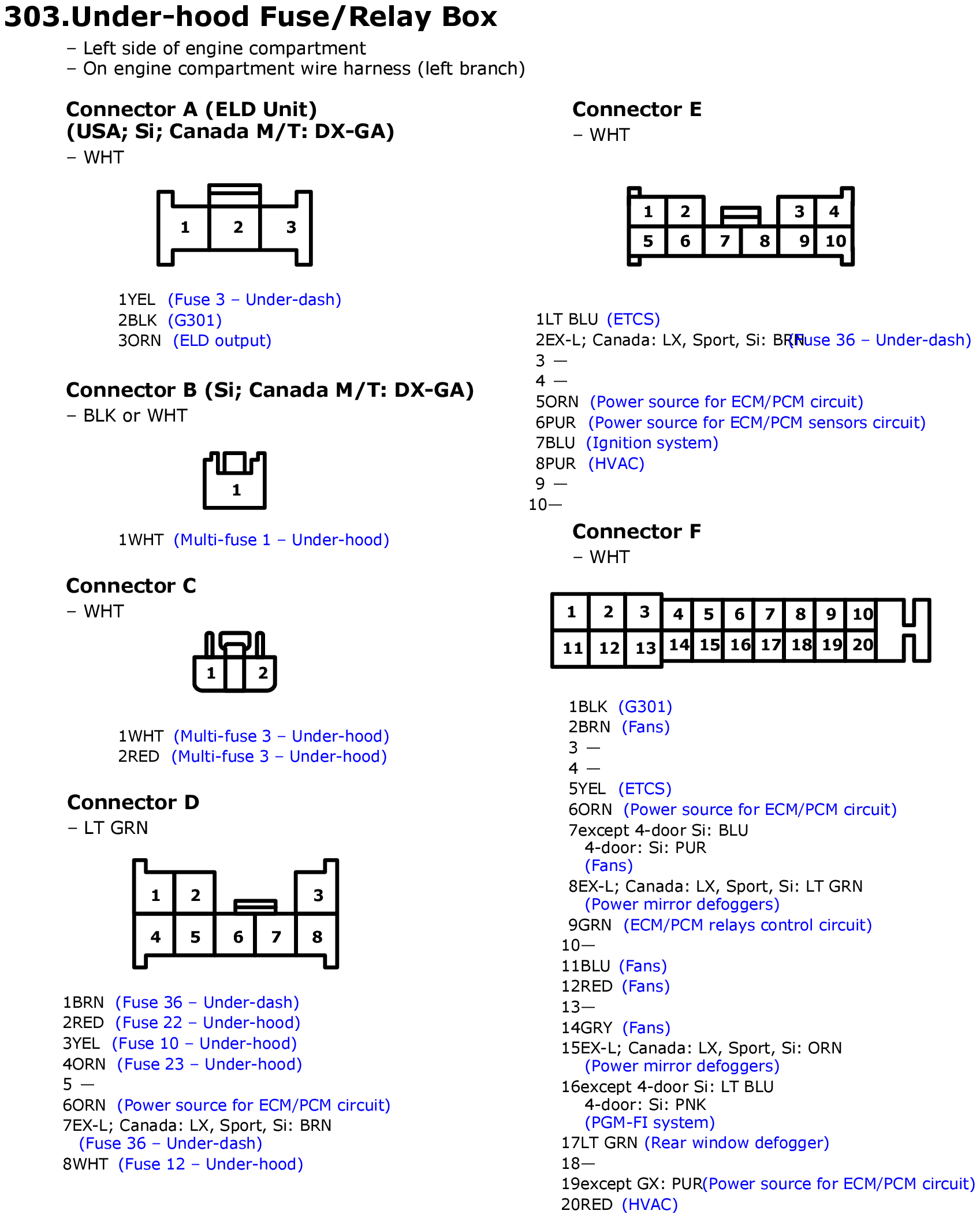

Fig 1: Under-hood Fuse/Relay Box Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.

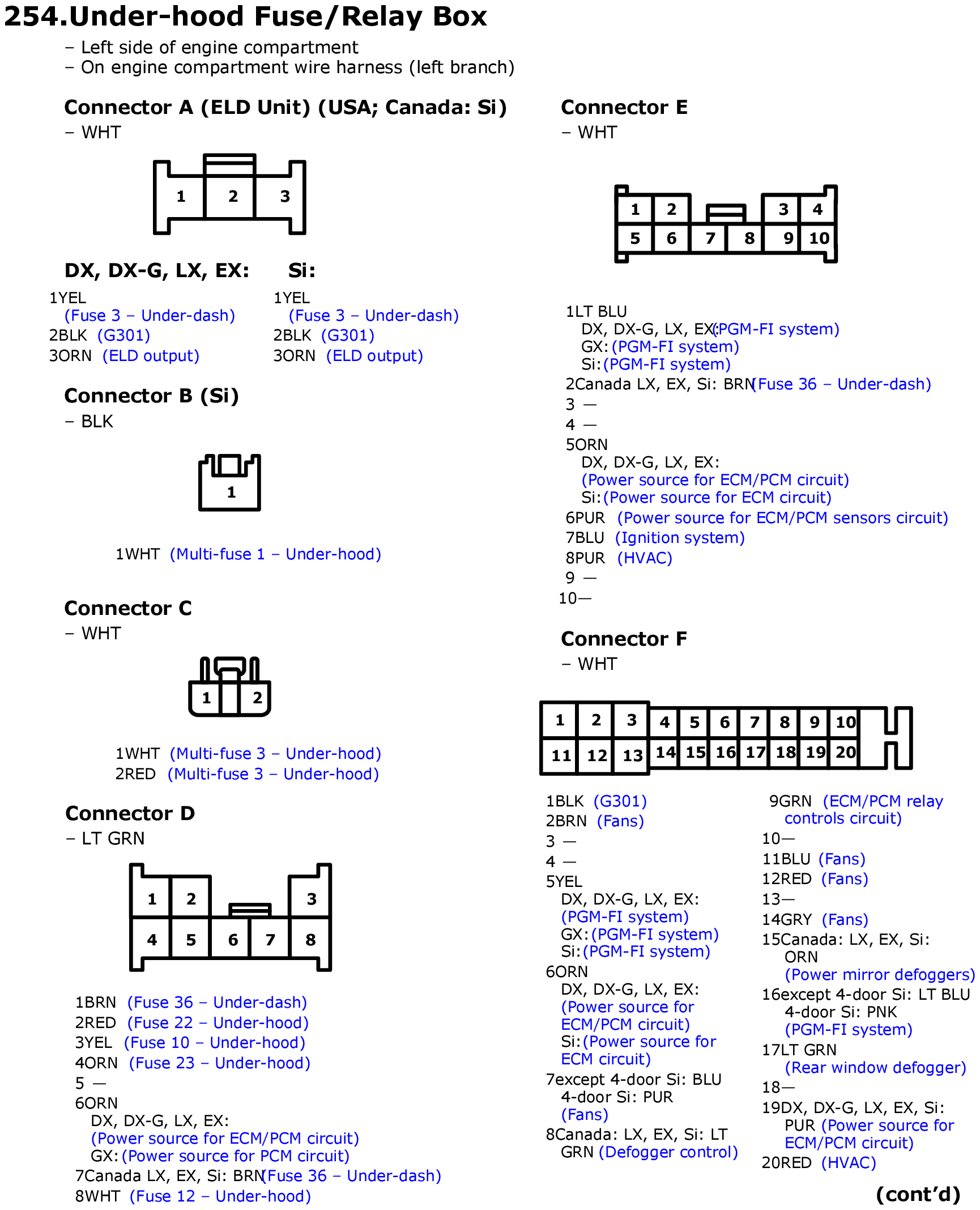

Fig 1: Under-Hood Fuse/Relay Box Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.

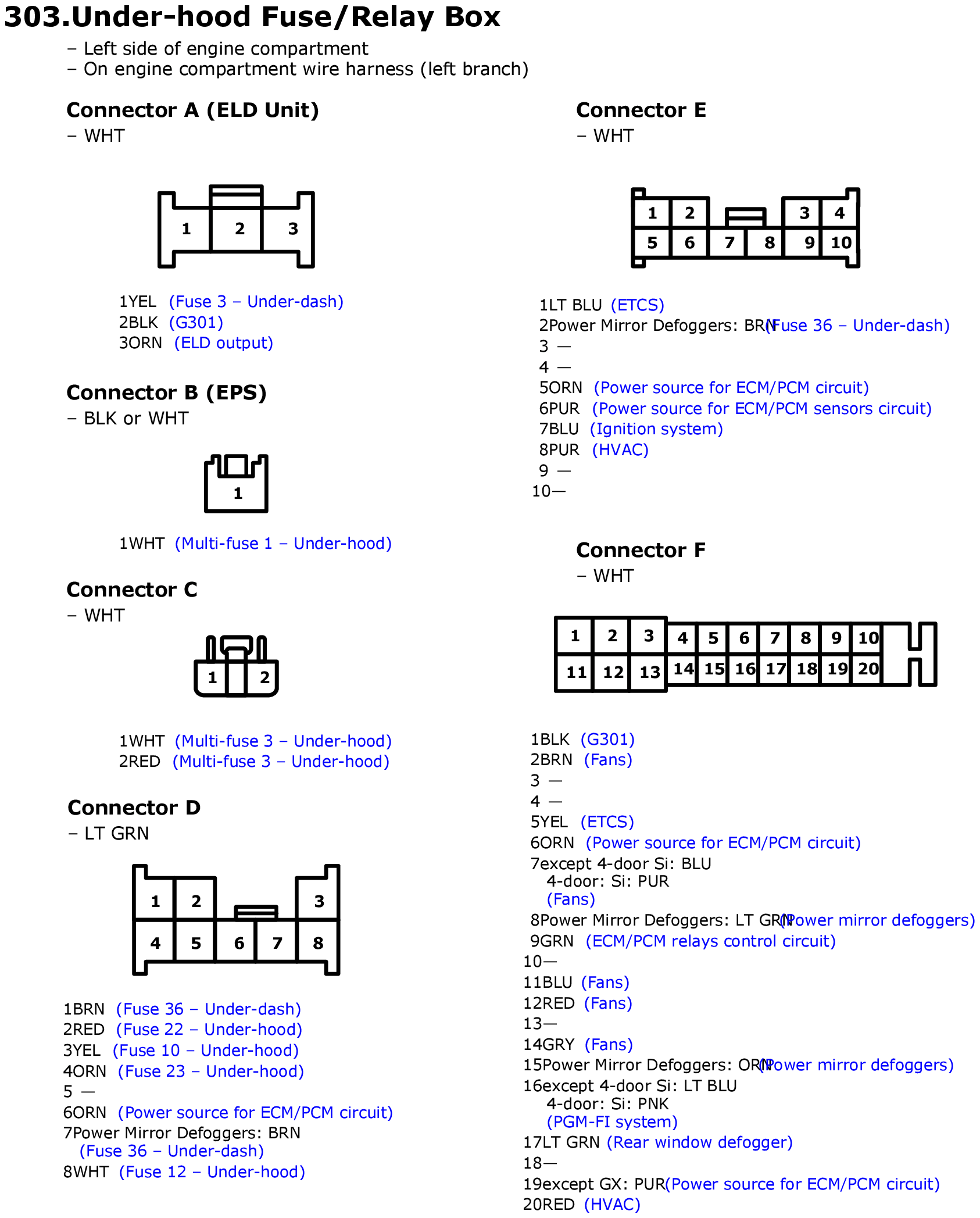

Fig 1: Under-hood Fuse/Relay Box Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.

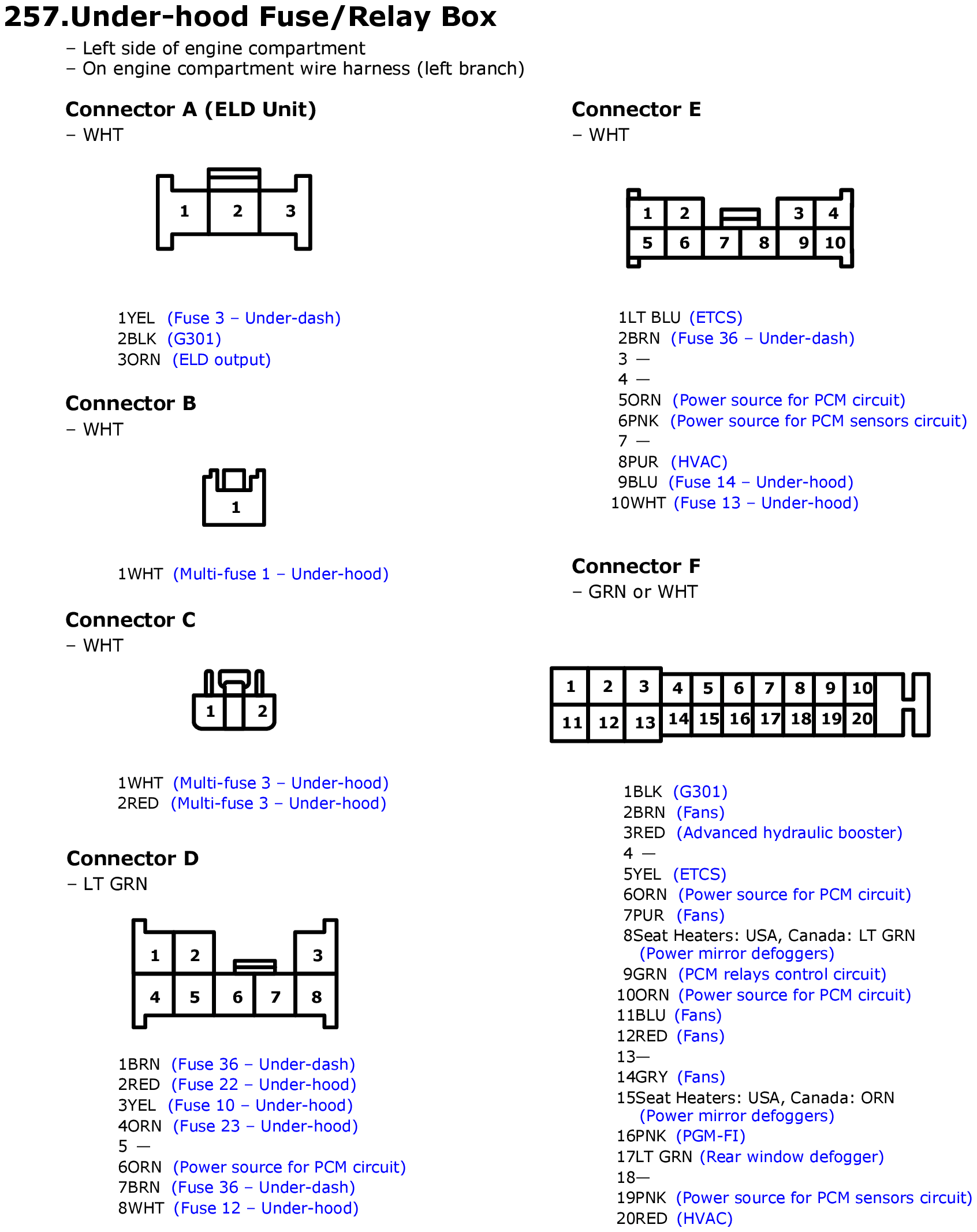

Fig 1: Under-hood Fuse/Relay Box Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.
