Home >> Honda >> 2011 >> Civic GX >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> Trunk Light Connector End View

Trunk Light Connector End View

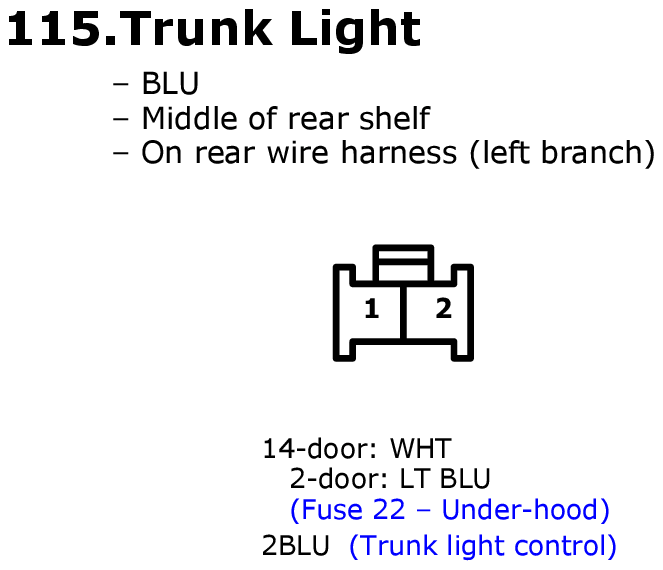

Fig 1: Trunk Light Connector End View
GHHW1589Courtesy of AMERICAN HONDA MOTOR CO., INC.


Fig 1: Trunk Light Connector End View
GHHW1893Courtesy of AMERICAN HONDA MOTOR CO., INC.

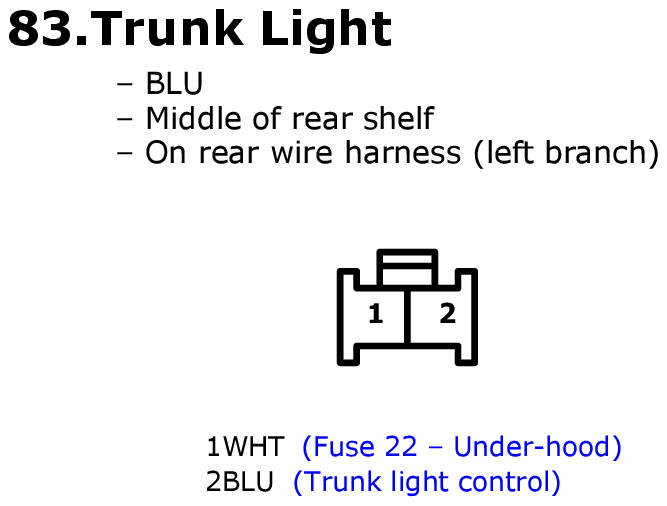

Fig 1: Trunk Light Connector End View
GHHW2171Courtesy of AMERICAN HONDA MOTOR CO., INC.

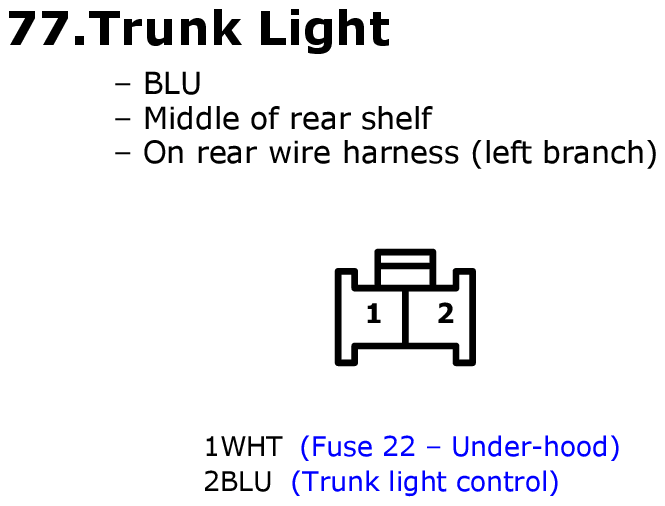

Fig 1: Trunk Light Connector End View
GHHW2416Courtesy of AMERICAN HONDA MOTOR CO., INC.
