Trunk Latch Switch (except Remote Trunk Release) Connector End View
Trunk Latch Switch (except Remote Trunk Release) Connector End View

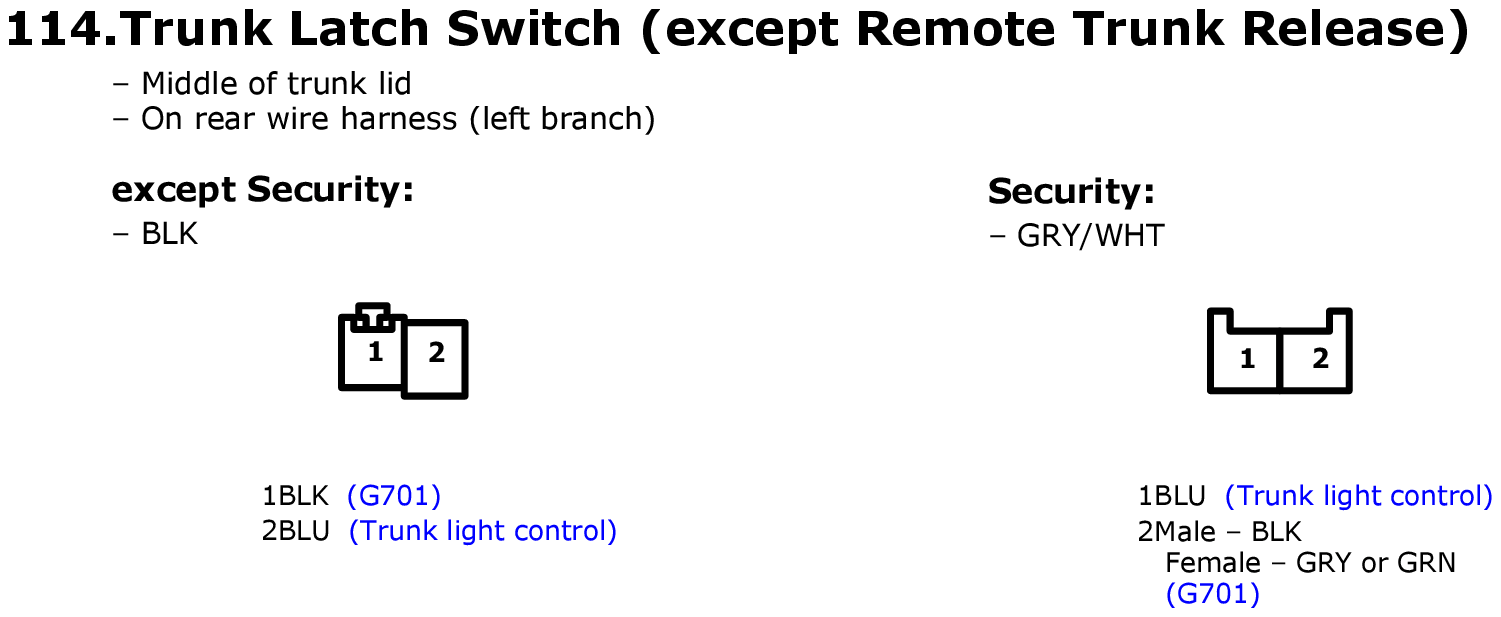

Fig 1: Trunk Latch Switch (except Remote Trunk Release) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
