Right Headlight Connector End View
Right Headlight Connector End View

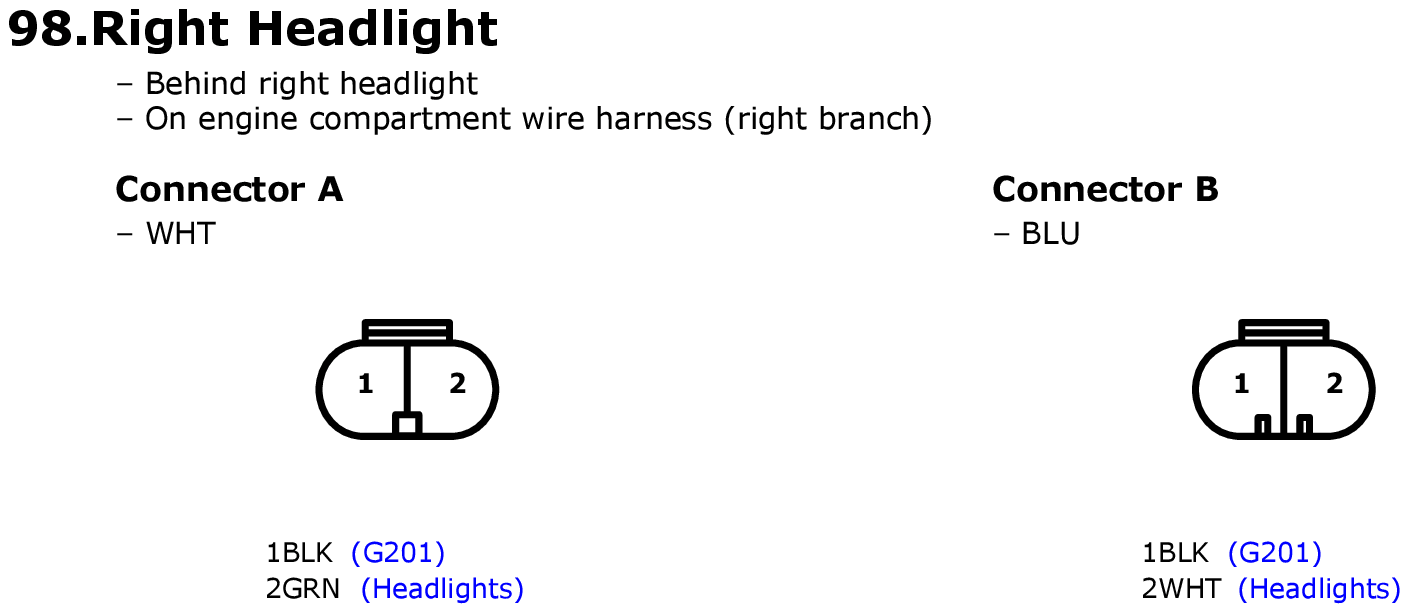

Fig 1: Right Headlight Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

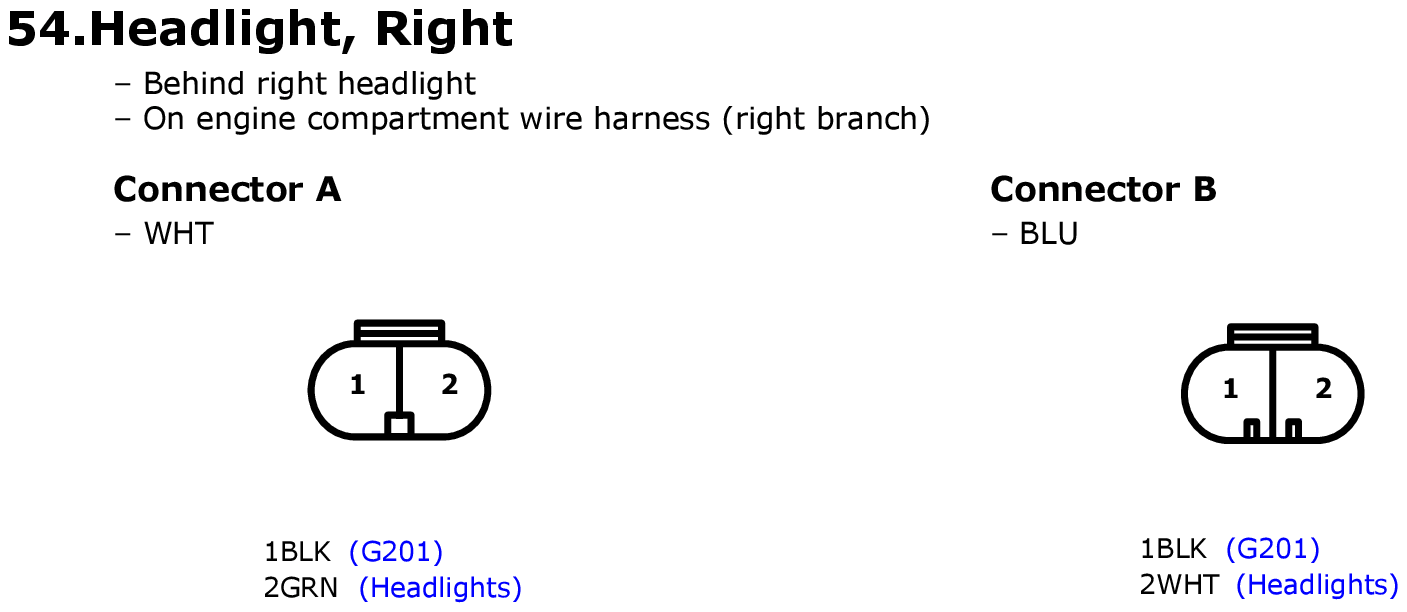

Fig 1: Right Headlight Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

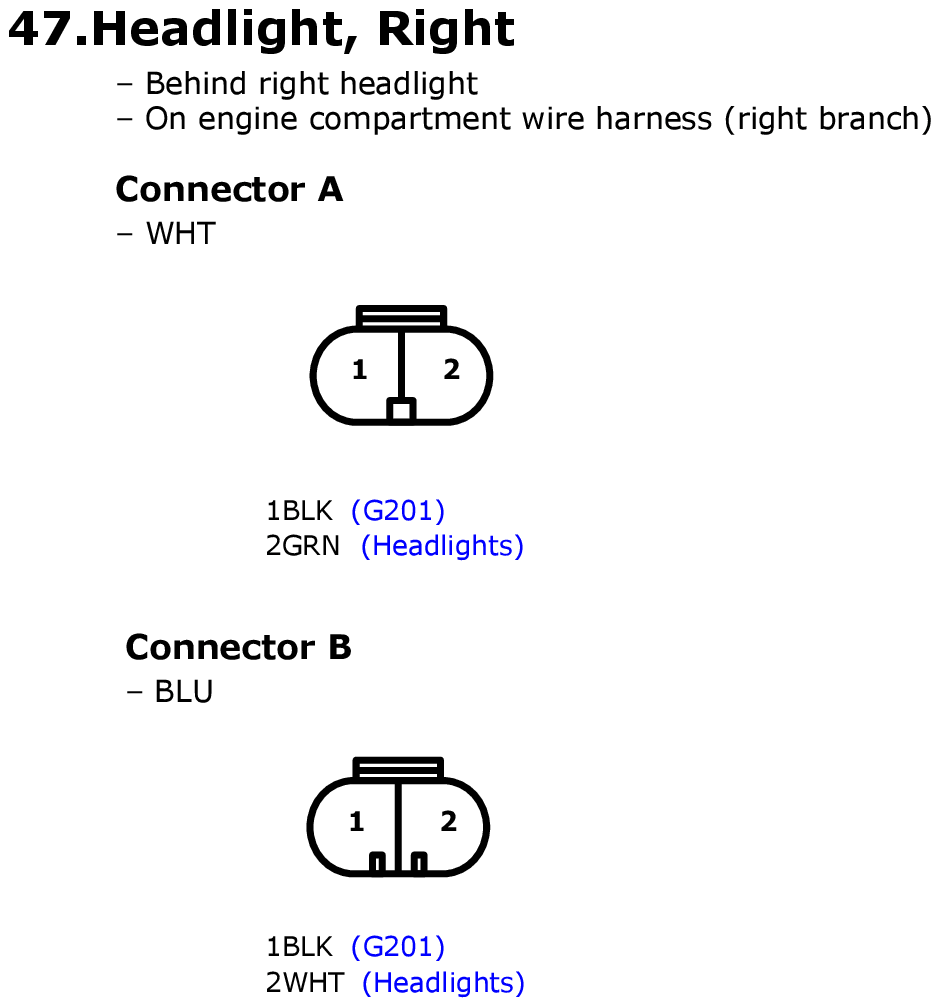

Fig 1: Right Headlight Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 1: Right Headlight Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 1: Right Headlight Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
