Right Brake Light/Taillight Connector End View

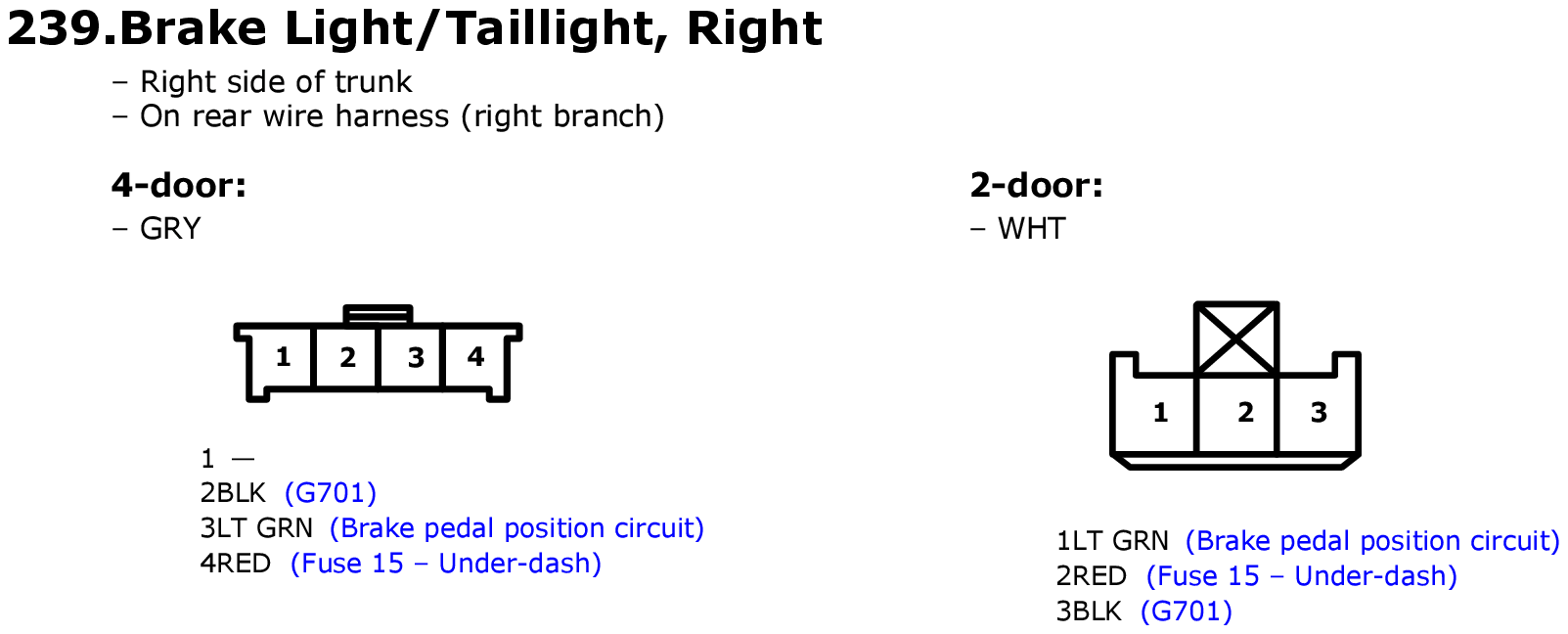

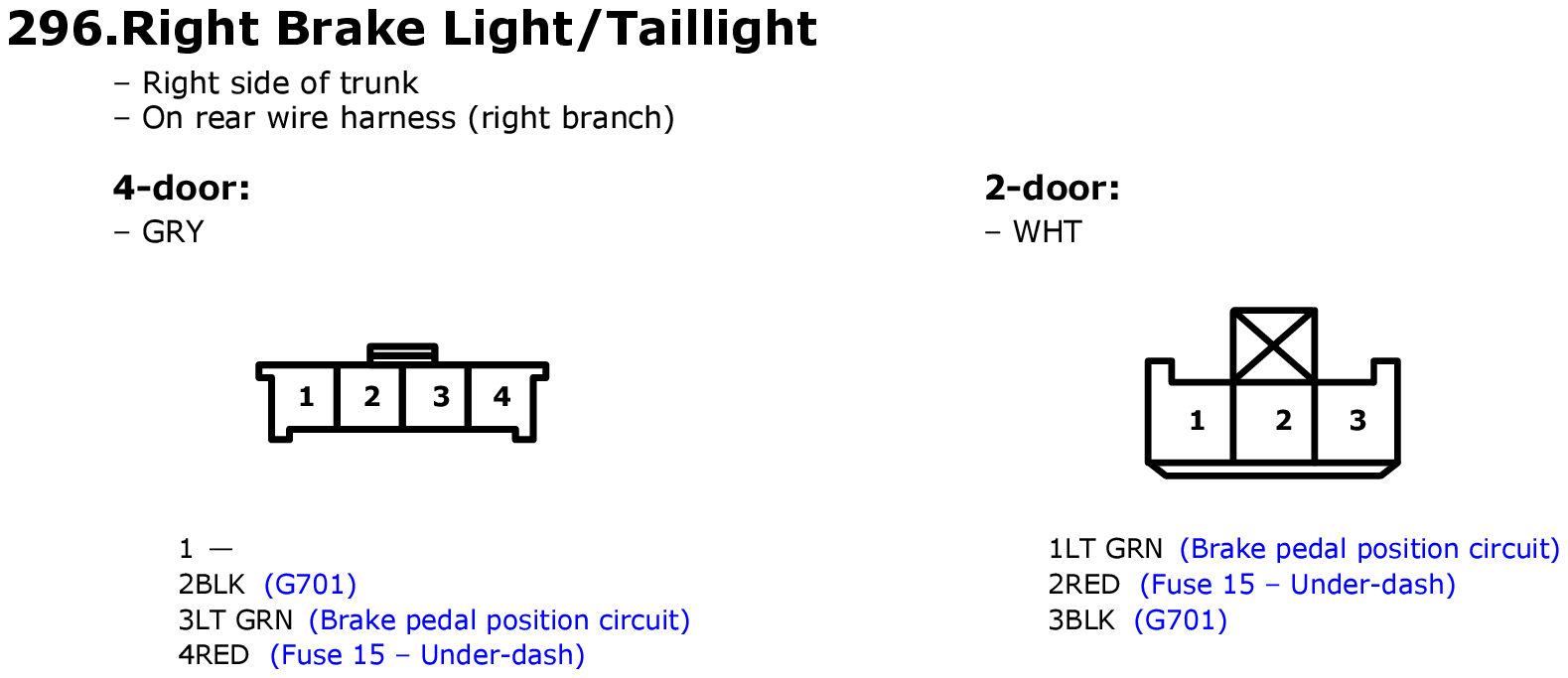

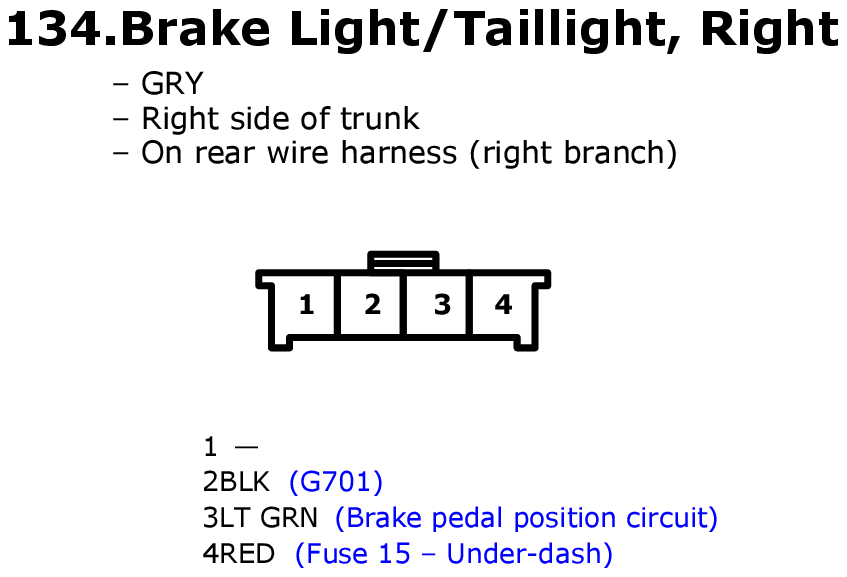

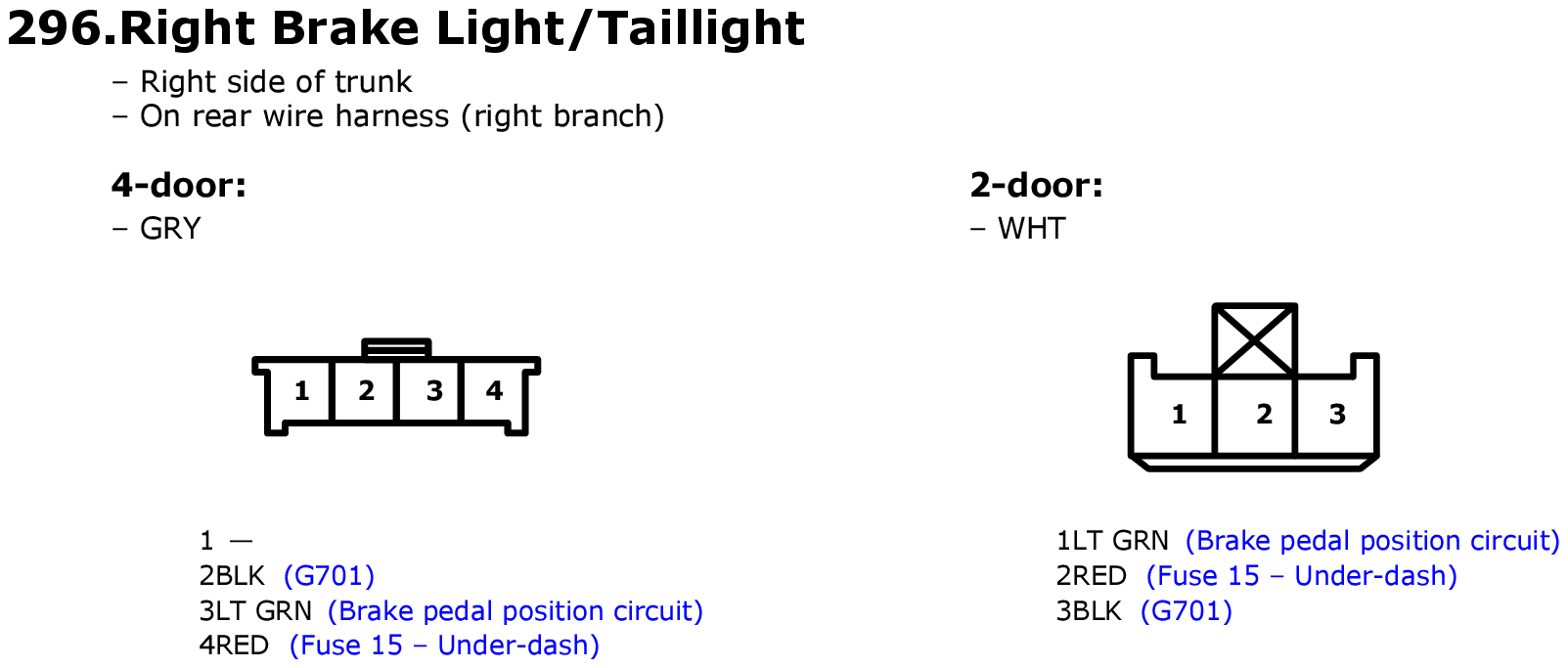

Fig 1: Right Brake Light/Taillight Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 1: Right Brake Light/Taillight Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 1: Right Brake Light/Taillight Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 1: Right Brake Light/Taillight Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 1: Right Brake Light/Taillight Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.
