Moonroof Control Unit (EX, Si) Connector End View
Moonroof Control Unit (EX, Si) Connector End View

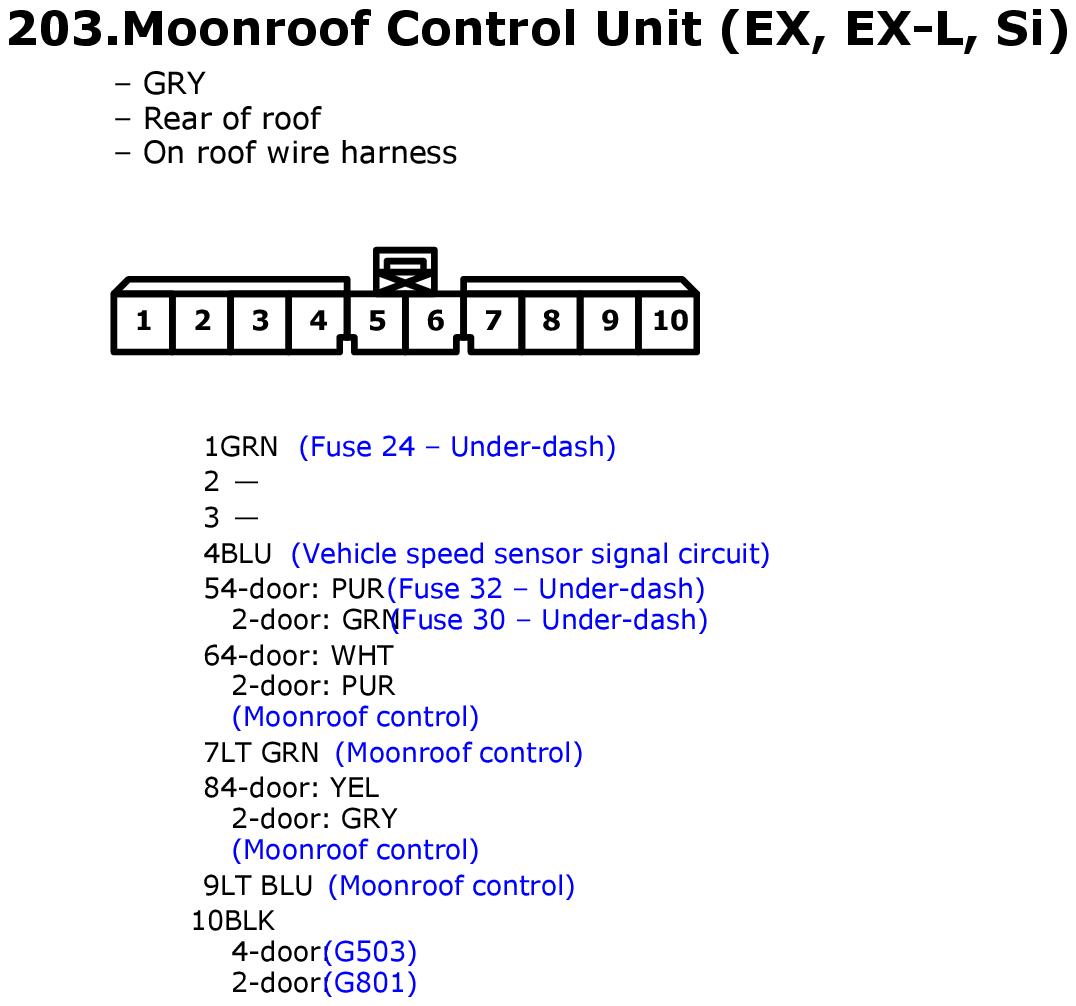

Fig 1: Moonroof Control Unit (EX, Si) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
