MAP Sensor (5MT) Connector End View

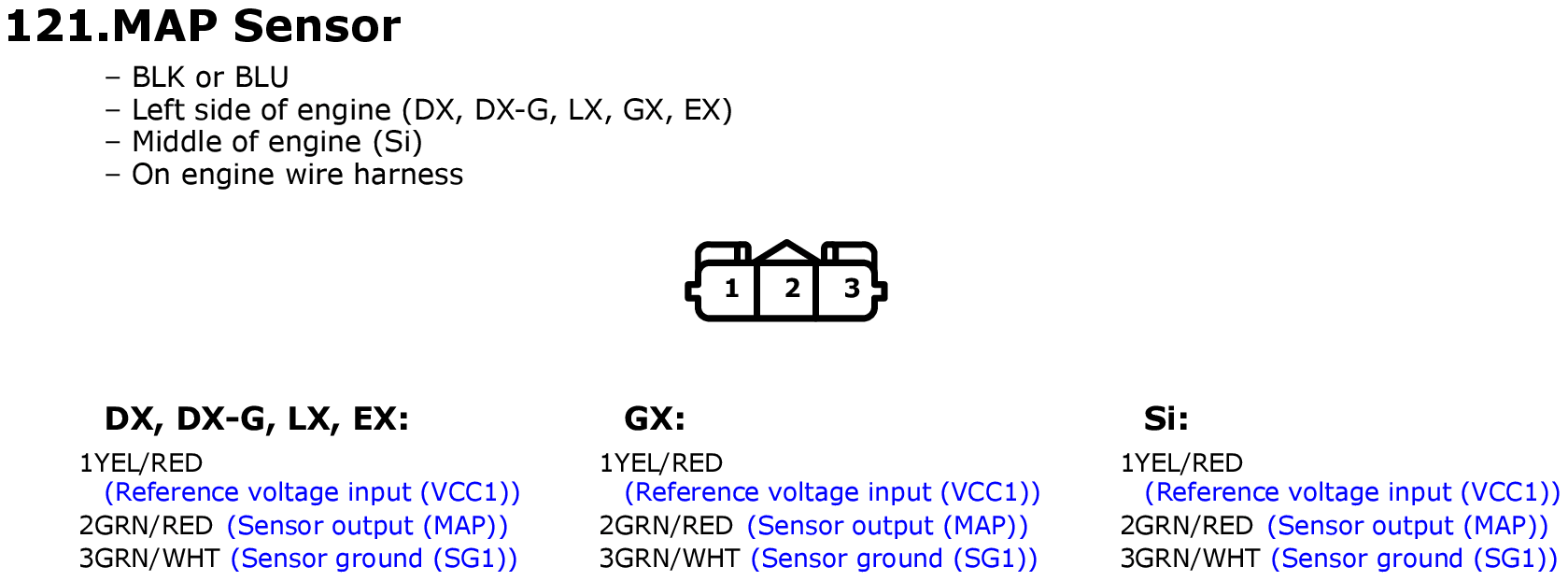

Fig 1: MAP Sensor (5MT) Connector End View
GHHW1043Courtesy of AMERICAN HONDA MOTOR CO., INC.

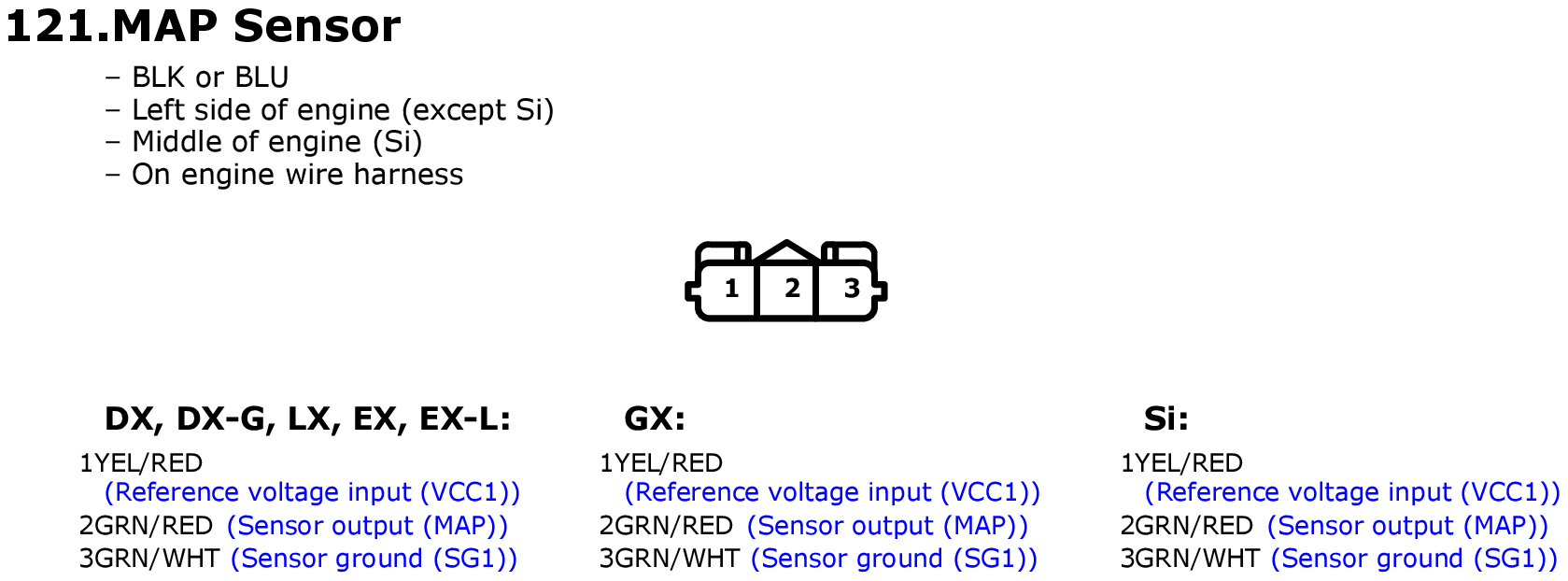

Fig 1: MAP Sensor (5MT) Connector End View
GHHW1317Courtesy of AMERICAN HONDA MOTOR CO., INC.
