Injectors Connector End View

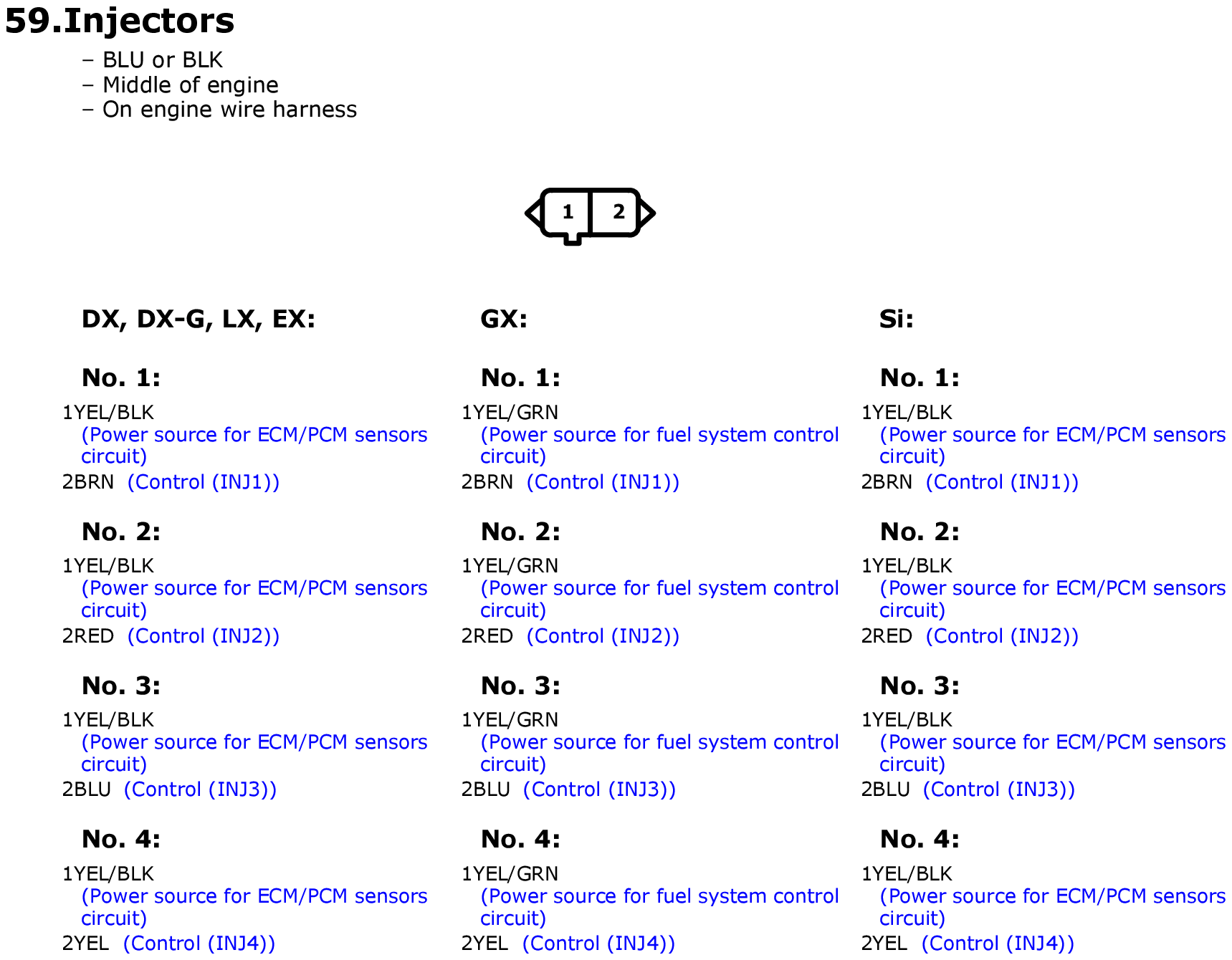

Fig 1: Injectors Connector End View
GHHW982Courtesy of AMERICAN HONDA MOTOR CO., INC.

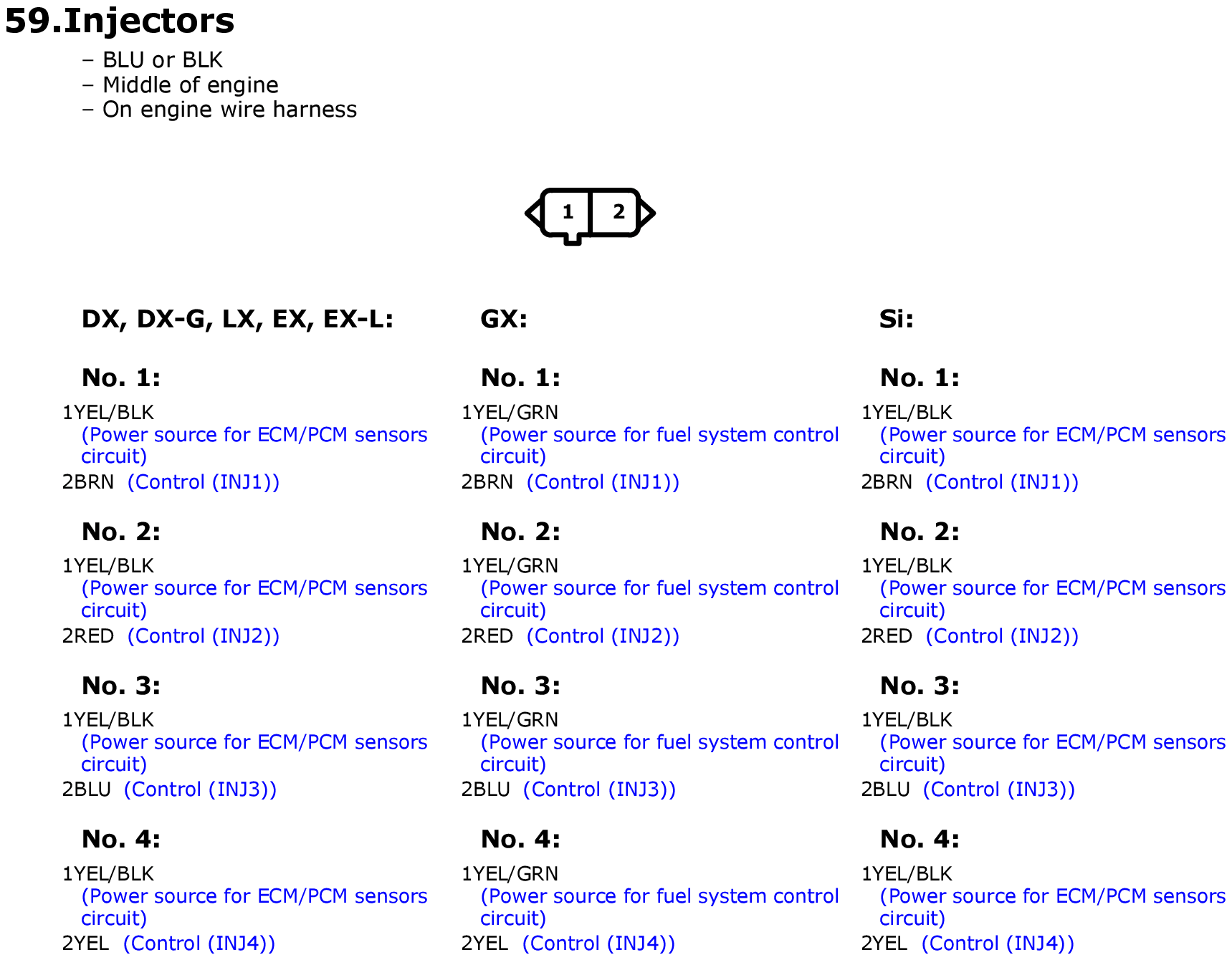

Fig 1: Injectors Connector End View
GHHW1255Courtesy of AMERICAN HONDA MOTOR CO., INC.

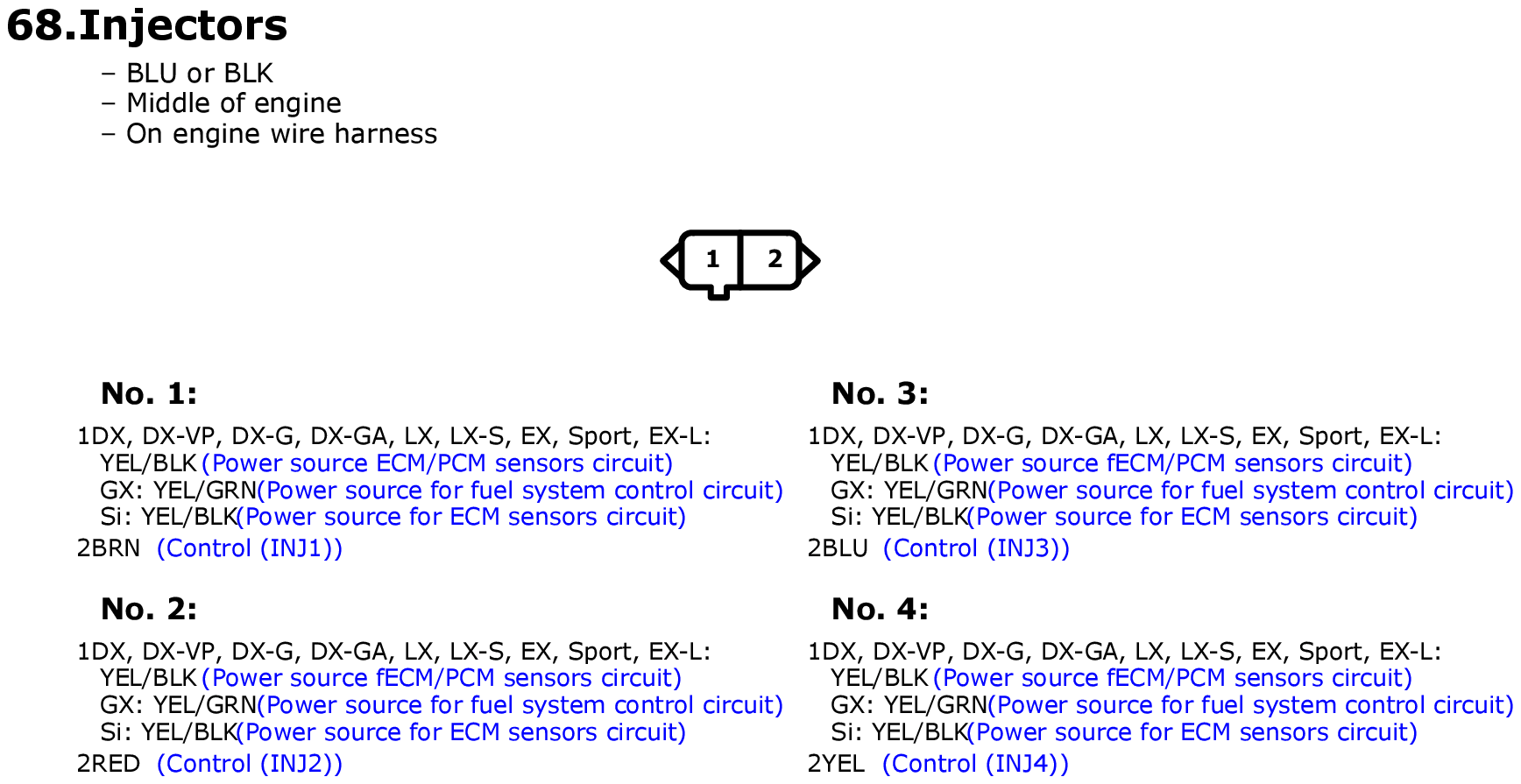

Fig 1: Injectors Connector End View
GHHW1542Courtesy of AMERICAN HONDA MOTOR CO., INC.

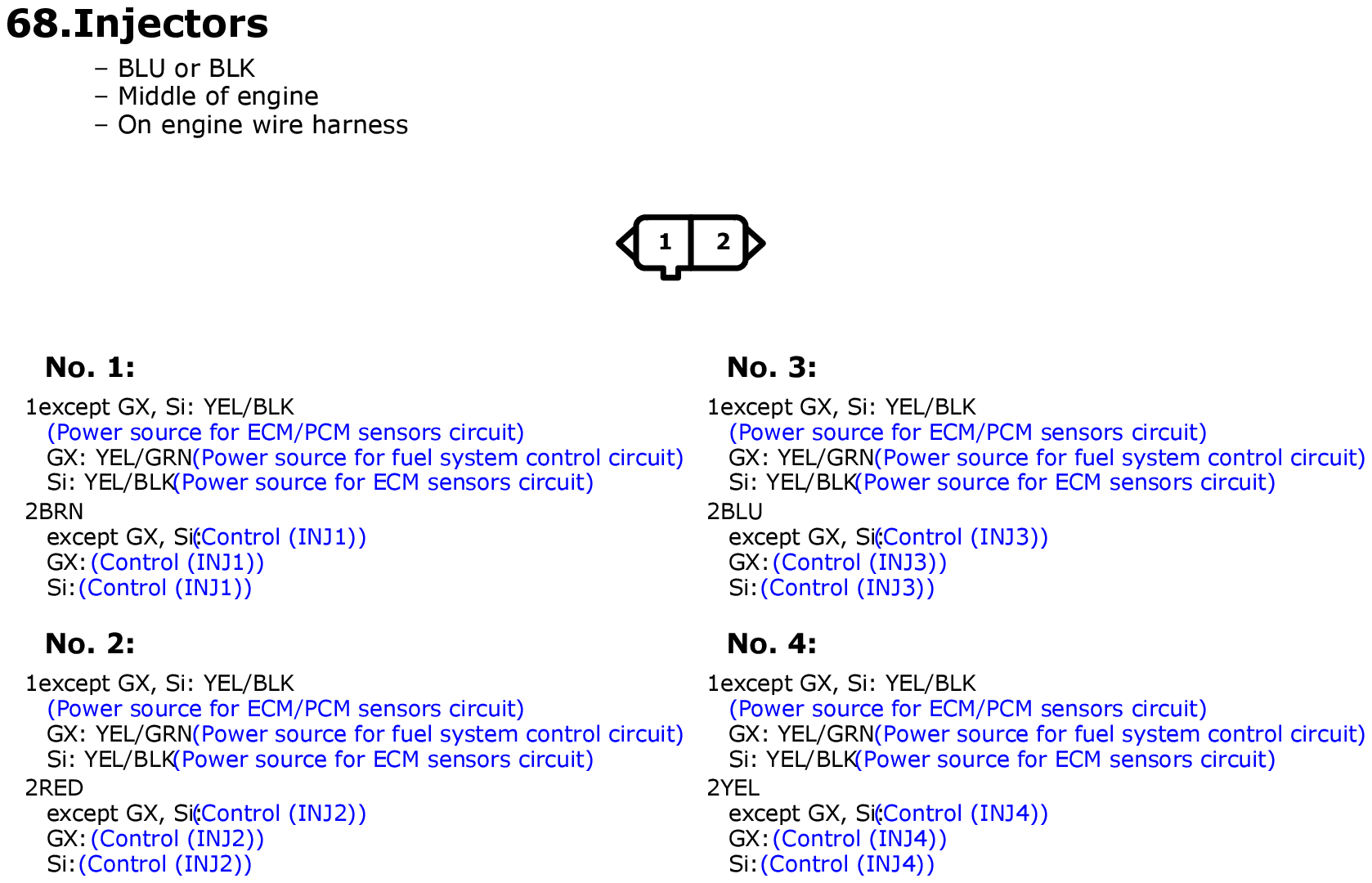

Fig 1: Injectors Connector End View
GHHW1848Courtesy of AMERICAN HONDA MOTOR CO., INC.


Fig 1: Injectors Connector End View
GHHW2142Courtesy of AMERICAN HONDA MOTOR CO., INC.

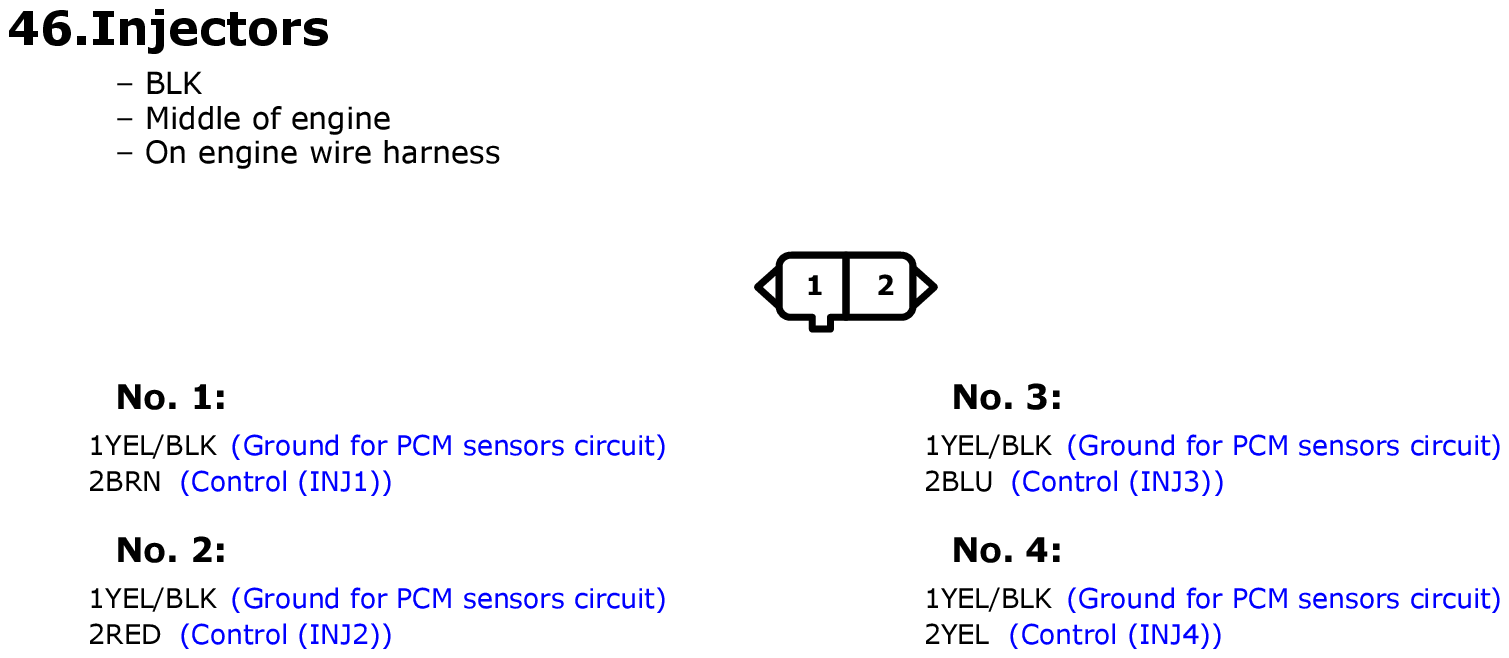

Fig 1: Injectors Connector End View
GHHW2385Courtesy of AMERICAN HONDA MOTOR CO., INC.
