Ignition Coils Connector End View

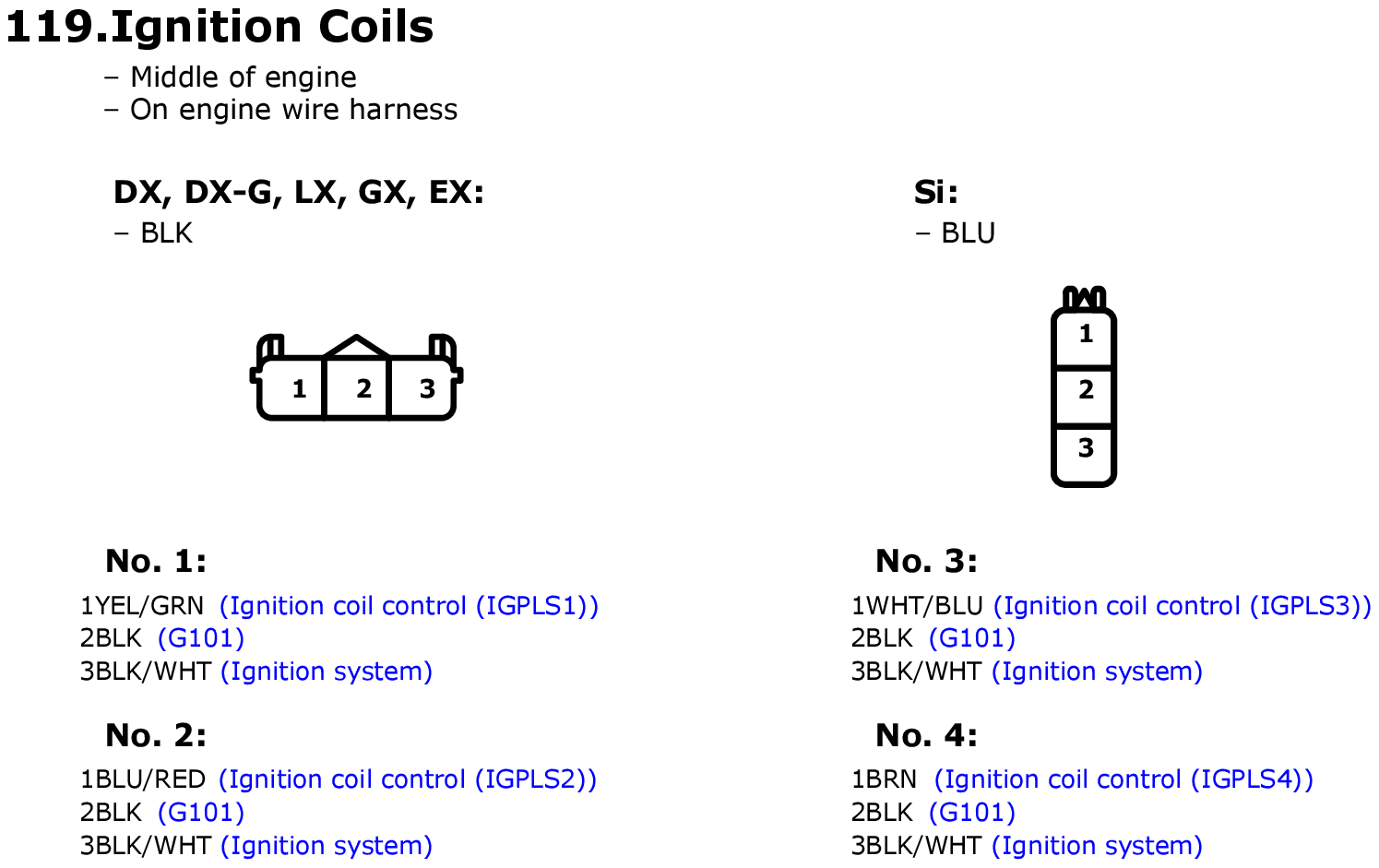

Fig 1: Ignition Coils Connector End View
GHHW1041Courtesy of AMERICAN HONDA MOTOR CO., INC.

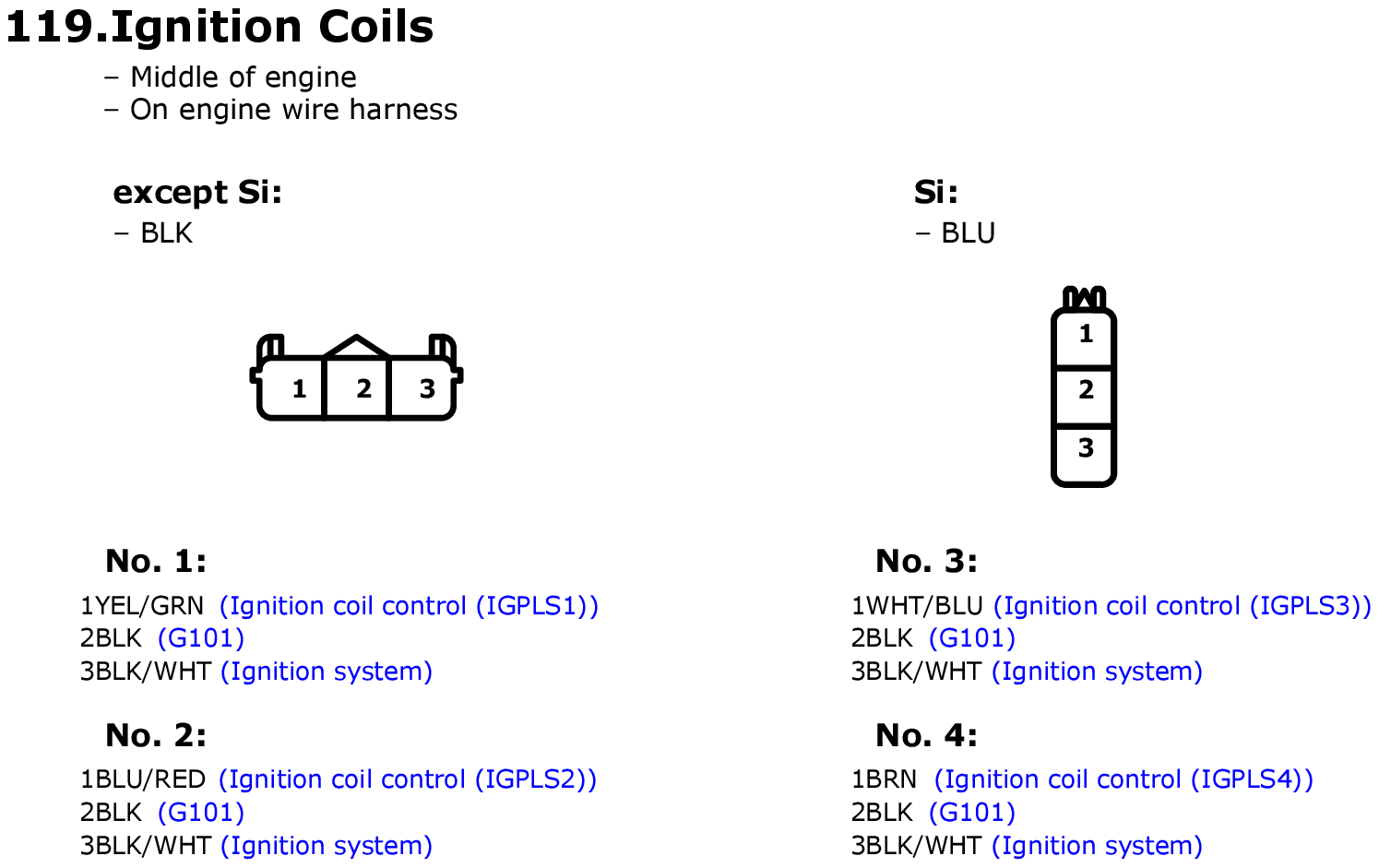

Fig 1: Ignition Coils Connector End View
GHHW1315Courtesy of AMERICAN HONDA MOTOR CO., INC.


Fig 1: Ignition Coils Connector End View
GHHW1622Courtesy of AMERICAN HONDA MOTOR CO., INC.

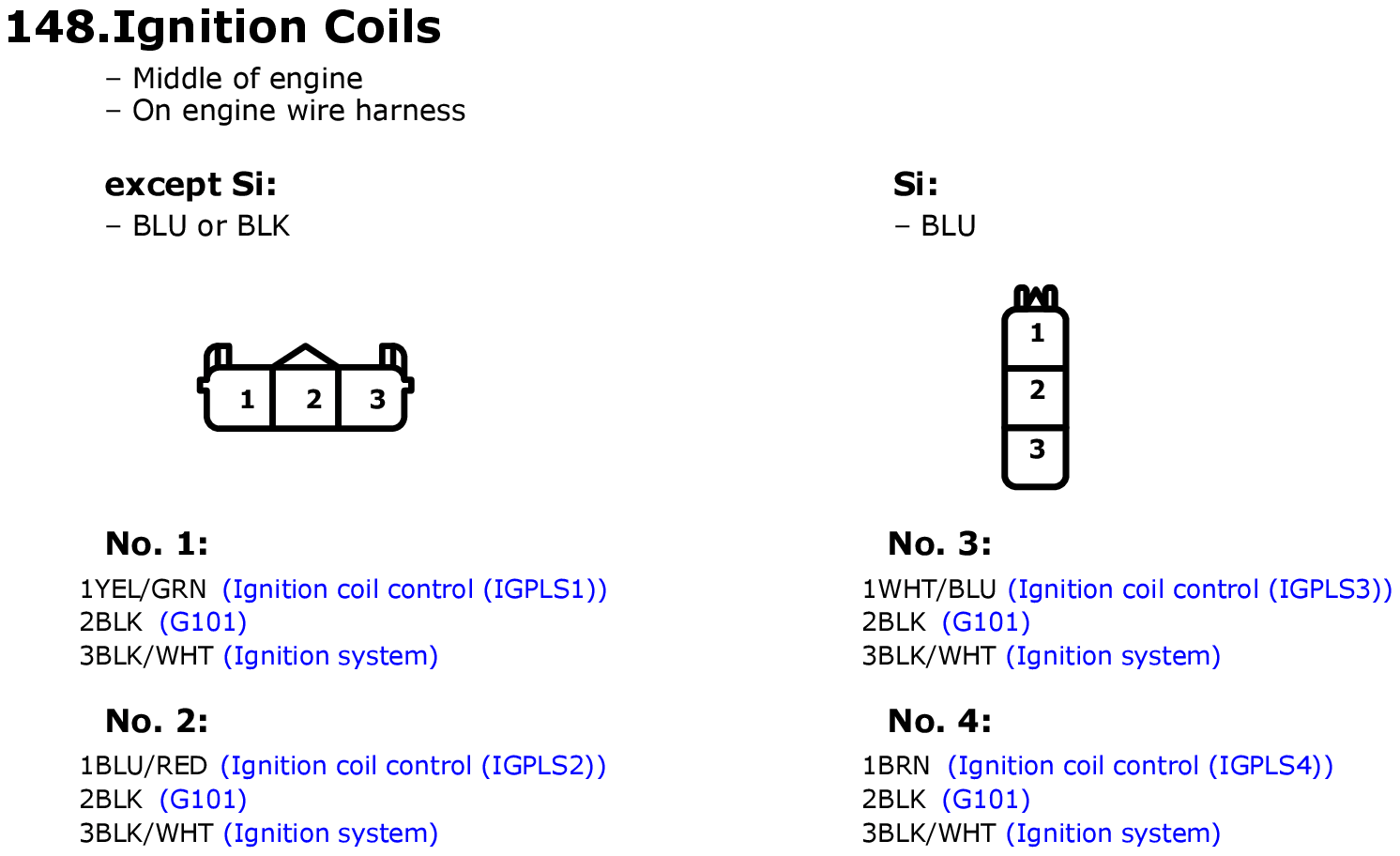

Fig 1: Ignition Coils Connector End View
GHHW1926Courtesy of AMERICAN HONDA MOTOR CO., INC.

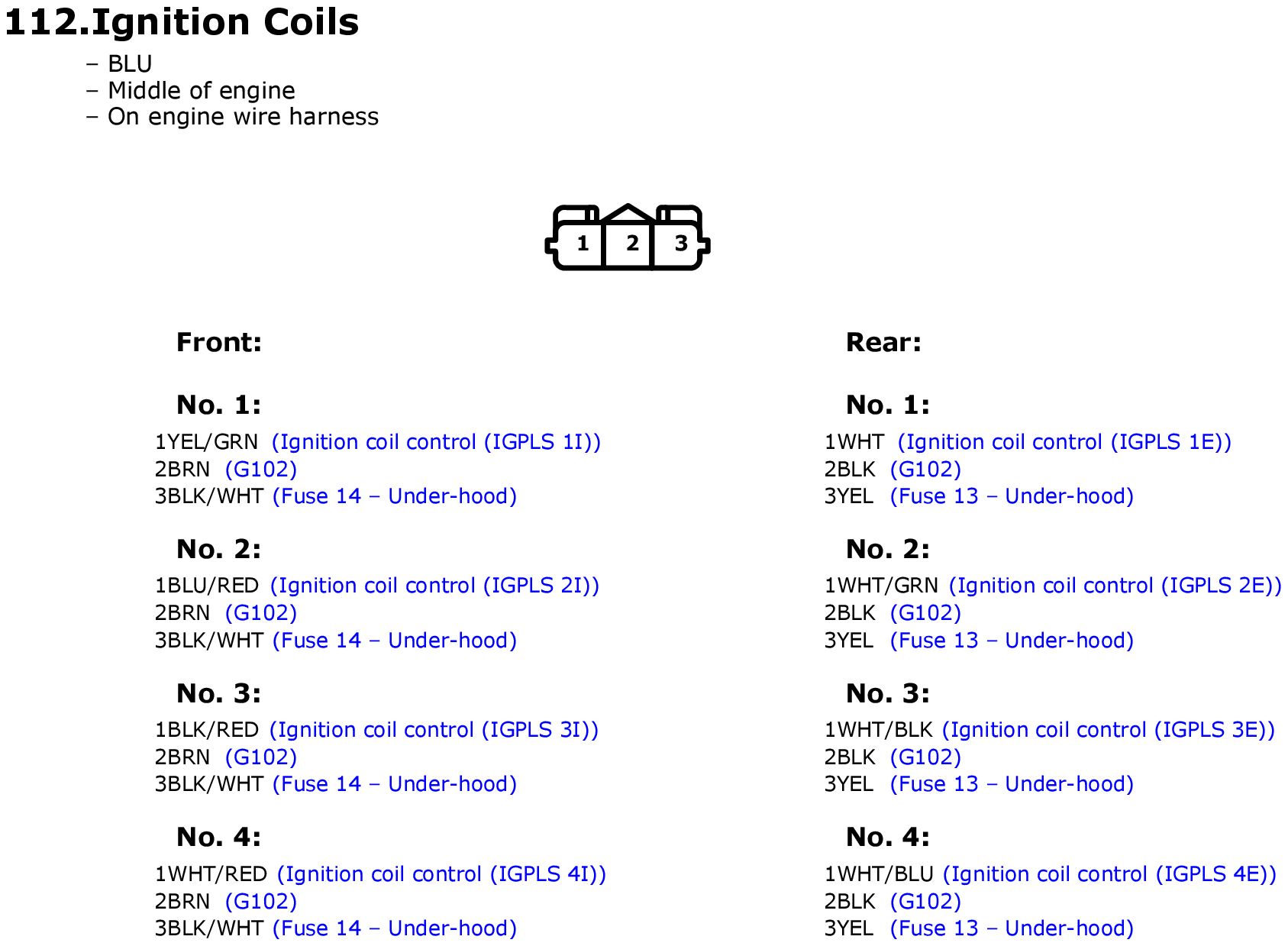

Fig 1: Ignition Coils Connector End View
GHHW2200Courtesy of AMERICAN HONDA MOTOR CO., INC.


Fig 1: Ignition Coils Connector End View
GHHW2448Courtesy of AMERICAN HONDA MOTOR CO., INC.
