Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Connector End Views
>>
Connector End Views
>>
Heater Control Panel/HVAC Control Unit (Manual A/C) Connector End View
Heater Control Panel/HVAC Control Unit (Manual A/C) Connector End View

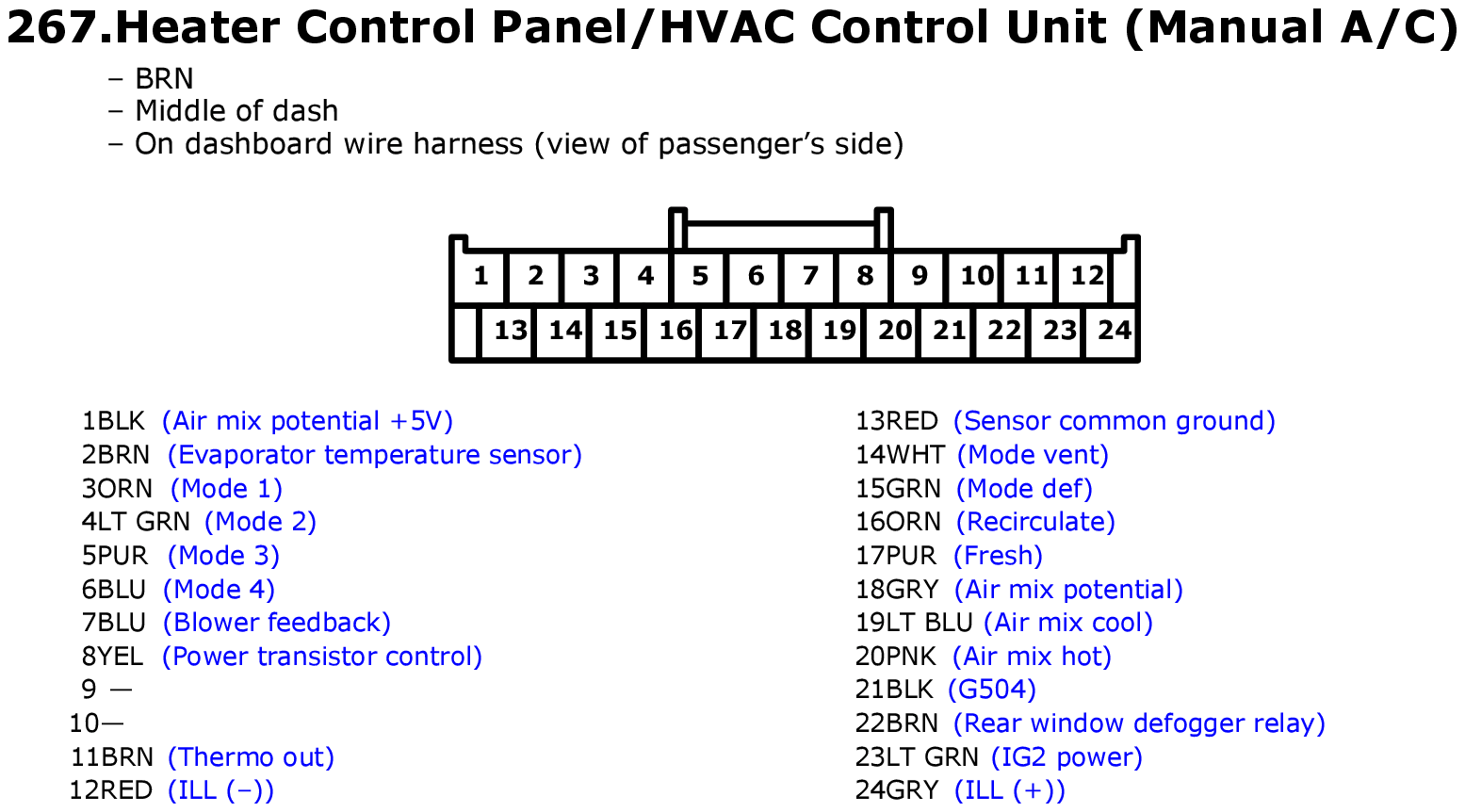

Fig 1: Heater Control Panel/HVAC Control Unit (Manual A/C) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
