HandsFreeLink Control Unit (R18A1 Engine with EPS) Connector End View

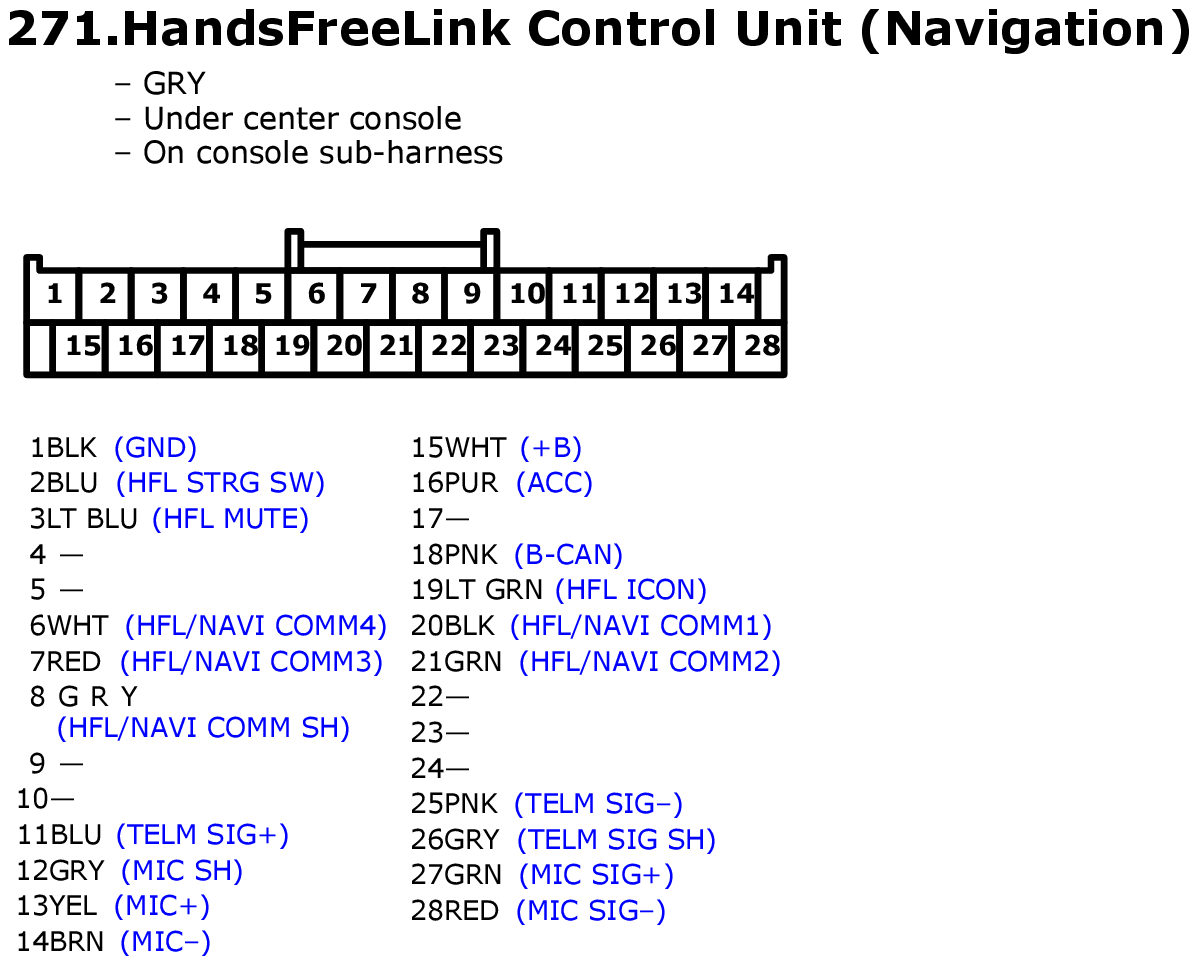

Fig 1: HandsFreeLink Control Unit (R18A1 Engine with EPS) Connector End View
GHHW1745Courtesy of AMERICAN HONDA MOTOR CO., INC.

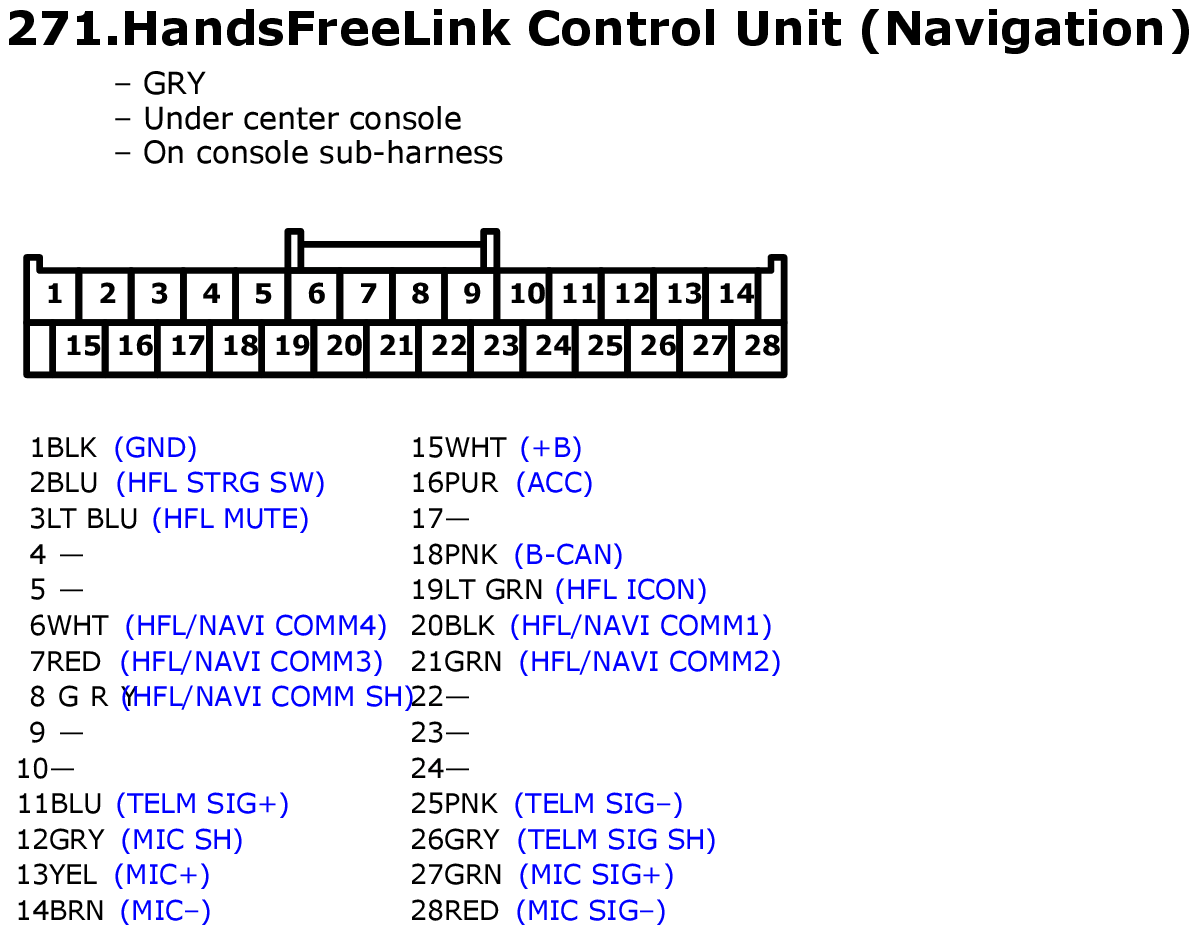

Fig 1: HandsFreeLink Control Unit (R18A1 Engine with EPS) Connector End View
GHHW2049Courtesy of AMERICAN HONDA MOTOR CO., INC.
