EPS Torque Sensor (EPS) Connector End View

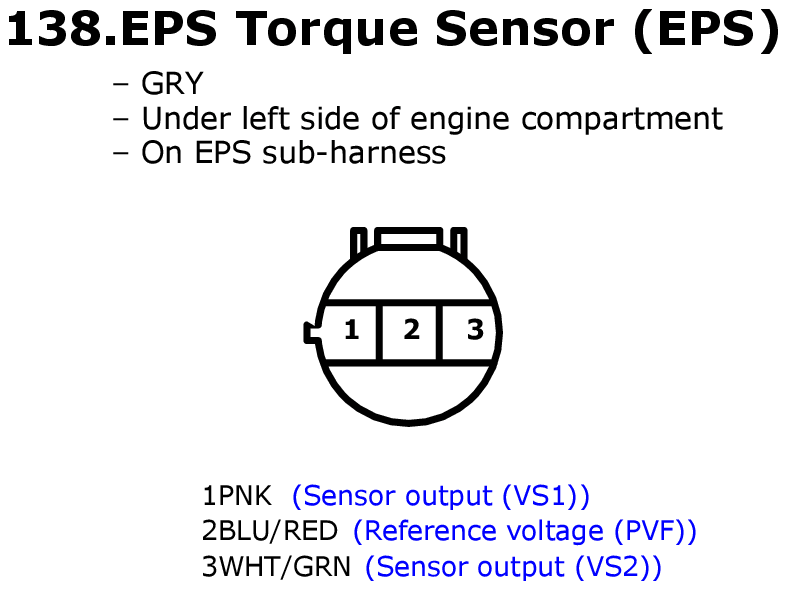

Fig 1: EPS Torque Sensor (EPS) Connector End View

GHHW1916

Courtesy of AMERICAN HONDA MOTOR CO., INC.
