Dash Lights Brightness Controller and Odometer Select/Reset Switch Connector End View

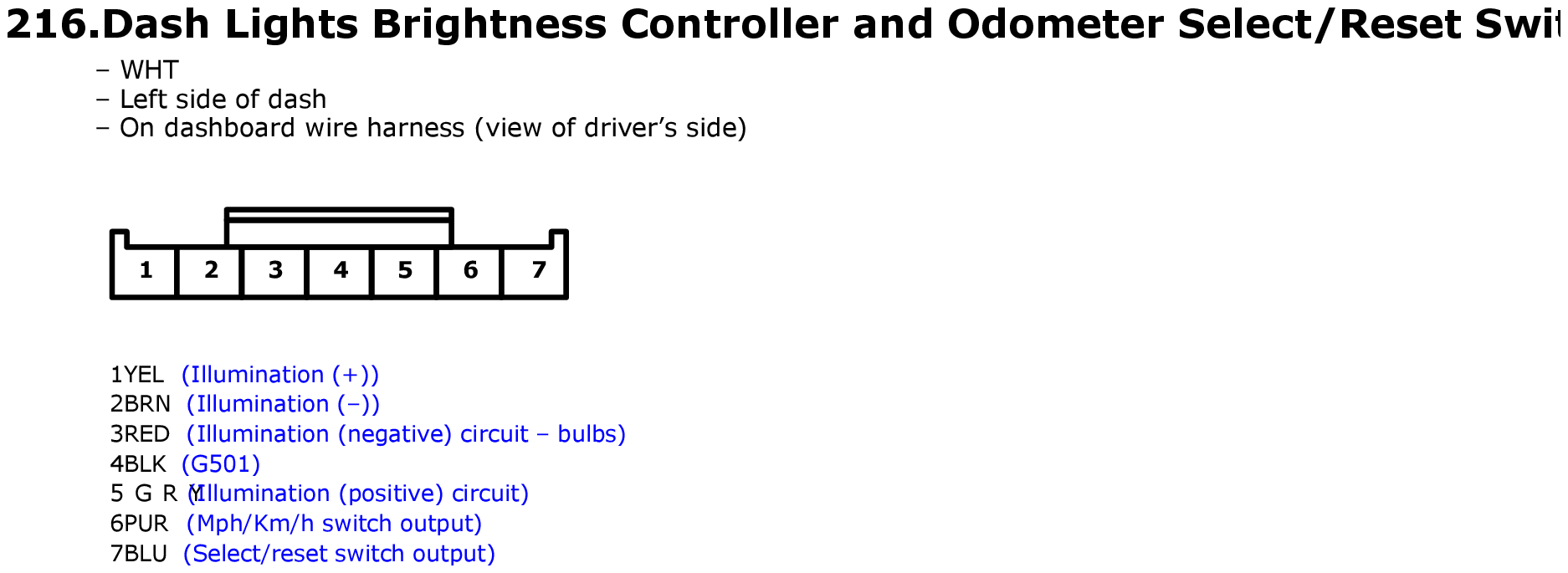

Fig 1: Dash Lights Brightness Controller and Odometer Select/Reset Switch Connector End View
GHHW1690Courtesy of AMERICAN HONDA MOTOR CO., INC.


Fig 1: Dash Lights Brightness Controller and Odometer Select/Reset Switch Connector End View
GHHW1994Courtesy of AMERICAN HONDA MOTOR CO., INC.
